Description

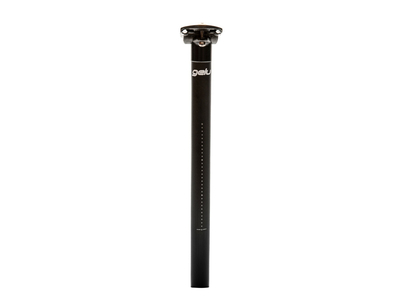

MCFK Seatpost Carbon straight UD | matt 31.6 mm
Outstanding Performance - MCFK Seatposts!
On the occasion of the company's 10th anniversary, as well as its high popularity, MCFK now offers a new, super light evolutionary stage of its straight seat post.
The seatposts by MCFK from Leipzig offer the ultimate in durability, comfort and weight. Hardly any other supports currently use carbon as efficiently as MCFK. For use comes a complex sophisticated, asymmetric layer structure, which varies depending on the diameter, length and adjustment range. Only with this development work and the precise manufacturing by hand in Germany, the high stability, the low weight and the excellent processing can be guaranteed.

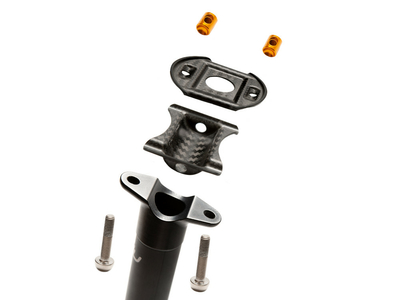

It is possible to mount saddles with round seat stays as well as highly oval carbon frame up to 11 mm on the yoke clamp with high-strength aluminum clamps, carbon rocker and precise, black titanium screws. The clamp is sturdy enough even for overload situations and, with rounded yokes and a long saddle support, protects the saddle frame from any shape or material.
NOTE: For frames with a flatter seat angle, we recommend checking the adjustment possibility of the saddle angle before mounting the seat post directly.
Technical specifications:
intended use : MTB, Road Bike, Cyclocross, Gravel
Material: Carbon prepreg, aluminum
Material screws: titanium
Diameter: 31.6 mm
Length (A): 320 mm or 420 mm
Minimum insertion depth (B): 100 mm
minute possible usable height (C): 100 mm (at 320 mm) or 200 mm (at 420 mm)
Max. possible effective height (D): 220 mm (at 320 mm) or 320 mm (at 420 mm)
Offset: 0 mm
Compatibility seat stays: round (7x7 mm) and high oval (up to 7x11 mm)
Max. Rider weight: 100 kg (driver, clothes and possibly luggage)
Finish: UD-Carbon, matt
Color / logos: white
Weight according to manufacturer: 110g (320 mm UD matte 31.6 mm), 122g (420 mm UD matte 31.6 mm)
Weight weighed by yourself:
Scope of supply: 1x MCFK seat post Carbon straight UD | matt 31.6 mm
