Description

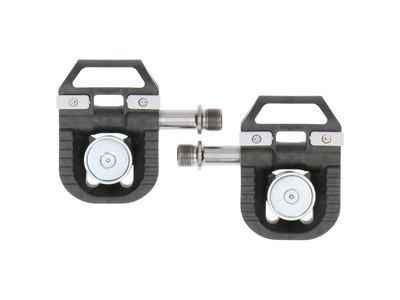

MAGPED Pedals Gravel
The magped Gravel Pedal is the first real alternative for the gravel bike. Thanks to the use of a patented magnet mechanism, it is possible to detach the foot from the pedal safely, quickly and easily at any time. The risk of falling and injury is reduced to an absolute minimum compared to pedals with fixed connections (e.g. clipless pedal system) - and your head remains free for enjoyable biking without fear.
Round kick
The magped pedal enables a round step, as both the muscle - extensors (70%) as well as the muscle - flexors (30%) of the leg muscles are stressed evenly. In this way, even longer bike tours become pure pleasure without cramps.
Weight
The magped Gravel Pedal is a modern Gravel Pedal made of super light and stable xCarbon Composite with a titanium axle . The weight, including the patented magnet system, is approx. 258g and is on par with other high-quality pedals.
position
This system allows the shoe to rotate slightly, thus protecting the joints when pedaling. The freedom of movement can be adjusted via two small screws on the front pedal.
traction
Depending on the strength of the magnet selected, the shoe is held magnetically to the pedal with a tensile force of up to 20 kg. Nevertheless, a quick and easy detachment in critical situations directly upwards is not a problem.

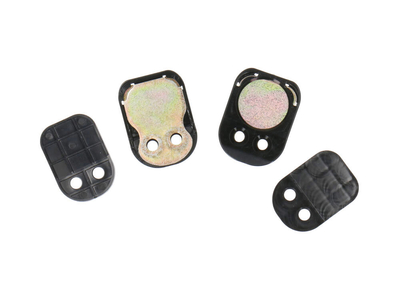

cleat
The shoe plate made of a rust-treated special steel can be mounted on any 2-hole Gravel or Race MTB shoe in just a few minutes. In contrast to other systems, dirt is not a problem for the magped.
Technical specifications:
intended use : Gravel / Cross Country
Material pedal axle: titanium
Material pedal body: xCarbon
Material footprint: xCarbon
Size contact area: kA
Bearings: sealed industrial ball bearings
Freedom of movement: adjustable via 2 screws on the front pedal
Release hardness: 200N (standard), variable using different magnets (100N or 150N, optional).
Trigger angle: -
Q factor: not specified
Compatibility: 2-hole SPD shoe, Race MTB shoe
Weight limit: not specified
Colours: black
Weight according to the manufacturer: 212g (pair)
Weight weighed: 212g (only pedals), 293g (pedals, shoe plates, fastening material)
Scope of delivery:
1 pair of MAGPED Pedals Gravel
2 magnets (200N)
2 metal plates for 2-hole shoes
2 plastic plates for 2-hole shoes
fastening material
