Description
LUPINE LED e-bike headlight SL F for Bosch Intuvia | StVZO
It's here, Lupine's e-bike lamp with StVZO approval for road traffic. Glare-free 900 lumen low beam, switchable high beam and Lupine's proven lens technology make them the first choice for your bike tours in the dark season. Your automatic "daytime running lights" increase your safety on the road.
Easy. Guaranteed.
Whether Nyon or Intuvia, the SL F fits any Bosch e-bike motor with outputs from 6V-12V (except 3W Bosch Classic Line). Installation directly under the Bosch display is extremely easy. There she sits ideally in the middle. Installed by a specialist retailer, it receives its power directly from the Bosch light cable. In this way, the guarantee of your e-bike remains completely untouched. In addition, the SL has real approval for pedelecs under 25 km/h, in terms of the StVZO.
As small and robust as possible
The SL is incomparable. It owes its unique appearance not only to the striking "daytime running lights", but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects the SL from impact, dust and water and meets the FL1 standard with flying colors. This is an ANSI/NEMA set of rules to be able to compare product specifications from different lamp manufacturers.
The lamp has a small button on the underside to switch it on and off. Otherwise you can control it via the remote control or the e-bike display.
Sensor-controlled "daytime running lights"
The stereo sensor technology, which can be adjusted in stages, scans your ambient light and switches your SL from "daytime running lights" to full beam in good time. The "daytime running light" of the StVZO models is continuously supported by the main headlight.
high beam

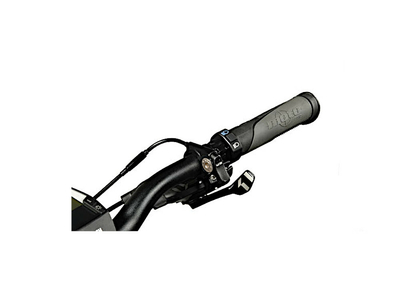

It is not just a question of a stronger low beam, when switching to high beam the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster rides and detours on the trail are no longer a problem. For safety and better comfort, the cable remote control switches back and forth.
Please use the high beams sensibly and dimm your headlights when there is oncoming traffic.
light years ahead.
At the heart of the Lupine SL are 18 Osram LEDs and the world's first 26° dual aspheric lens system for bicycle lamps. These not only illuminate from afar, but also illuminate the close-up area evenly.
Technical specifications:
Material: Aluminum 6061-T6
Dimensions (LxWxH): 49 x 50 x 48mm
Supply voltage: 6 - 12 V DC
Consumption: 1.5 W daytime running lights, 16 W low beam, high beam
Power supply: Bosch e-bike drive, plug already installed
Compatibility e-bike: Bosch, mounting under the Intuvia & Nyon display
Illuminant: 18x Osram Compact CL LED
Luminous intensity: 900 lumen low beam, 1300 lumen high beam
Optics: 26° Dual Aspheric Lens System
Functions: daytime running lights, low beam, high beam with remote control
Communication: -
Approval StVZO: K license plate, for e-bikes up to 25km/h
Bracket: directly under Bosch Intuvia & Nyon (1st generation) display
Color: matt black anodized
Weight according to the manufacturer: 95g
Weight weighed: 129g (incl. cable and remote control), 142g (incl. bracket)
Scope of delivery:
1x Lupine e-bike lamp head SL F with cable and plug for Bosch drives and cable remote control
1x holder for Bosch Intuvia & Nyon 1 display
The partially illustrated bicycle with attachments and the Bosch display are for illustration purposes only and are not included in the scope of delivery.
Instructions: SL-F EN | EN
