LUPINE headlight SL Nano AF | 5.0 Ah SmartCore | StVZO
It is here, Lupine's smallest lamp with StVZO approval for road traffic. Glare-free 700 lumens low beam, switchable high beam and Lupine's proven lens technology make it the first choice for your bike tours in the dark season. Your automatic daytime running lights increase your safety on the road.
Simple. Guaranteed.
The installation of the light in front of the stem is very easy thanks to the stable one-sided holder made of aluminum. There it sits ideally in the middle. Once installed, it gets its power from the strong 5.0 Ah battery. In addition, the SL AF Nano has a real approval in terms of the StVZO.
As small and robust as possible
The SL F Nano is incomparable. It owes its unique appearance not only to the striking daytime running lights, but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects it from impacts, dust and water and meets the IP68 standard with flying colors.
Sensor controlled daytime running lights
The stereo sensors scan your ambient light and switch your SL AF from daytime running to low beam in good time. The daytime running lights of the StVZO models are continuously supported by the main headlights.
High beam
It is not just about a stronger low beam. When switching to high beam, the entire light pattern changes. This means that the area above the glare limit can be seen from afar. Faster trips and detours on the trail are no longer a problem either. For safety and convenience, the remote control is used to switch back and forth.
Please use the high beam wisely and block out oncoming traffic.
SmartCore battery

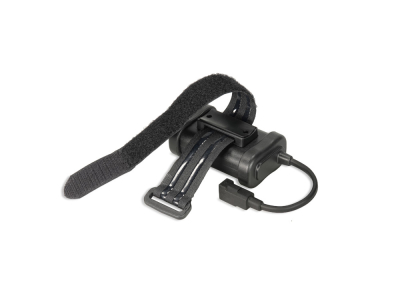

The robust 5.0 Ah SmartCore battery can be easily attached to the headband using the FastClick holder. This battery contains powerful electronics and a short press on the control panel displays the current charge level in 10% steps. The advantage is obvious, the capacity can be checked at any time, regardless of whether the battery is in use, is being charged or has been waiting for weeks in the hallway to be used. A red light or running light function can be switched on at the touch of a button.
Light output - burn time (standard mode):
High beam 1100 lumens / 14 W - 2:30 h
Low beam 700 lumens / 8 W - 4:20 h
Daytime running light / 2 W - 11:40 h
Technical specifications:
Material lamp head: CNC-milled, aluminum 6061-T6, shot-peen, hard-anodized
Dimensions (ØxL): 41 x 30 mm
Light source: 2x Osram Compact PL LED
Luminosity: 1100 lumens (high beam), 700 lumens (low beam)
Range: up to 230 m
Protection class: IP 68 (water resistance), IK 09 (impact resistance)
Battery: 5.0 Ah (35 Wh) SmartCore with capacity display and rear light function
Approval StVZO: yes, K mark
Bracket: SL AF Nano handlebar bracket for 31.8 mm or 35.0 mm handlebar diameter
Color: Black
Weight according to the manufacturer: 52g (only lamp head), 190g (battery)
Weight weighed by yourself:
Scope of delivery:
1x Lupine lamp head SL Nano AF
1x 5.0 Ah SmartCore battery

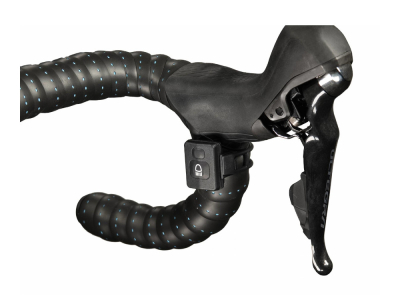

1x Bluetooth remote control with Peppi V5 handlebar bracket
1x SL Nano AF quick release handlebar bracket for 31.8 mm or 35.0 mm handlebar diameter
Velcro straps

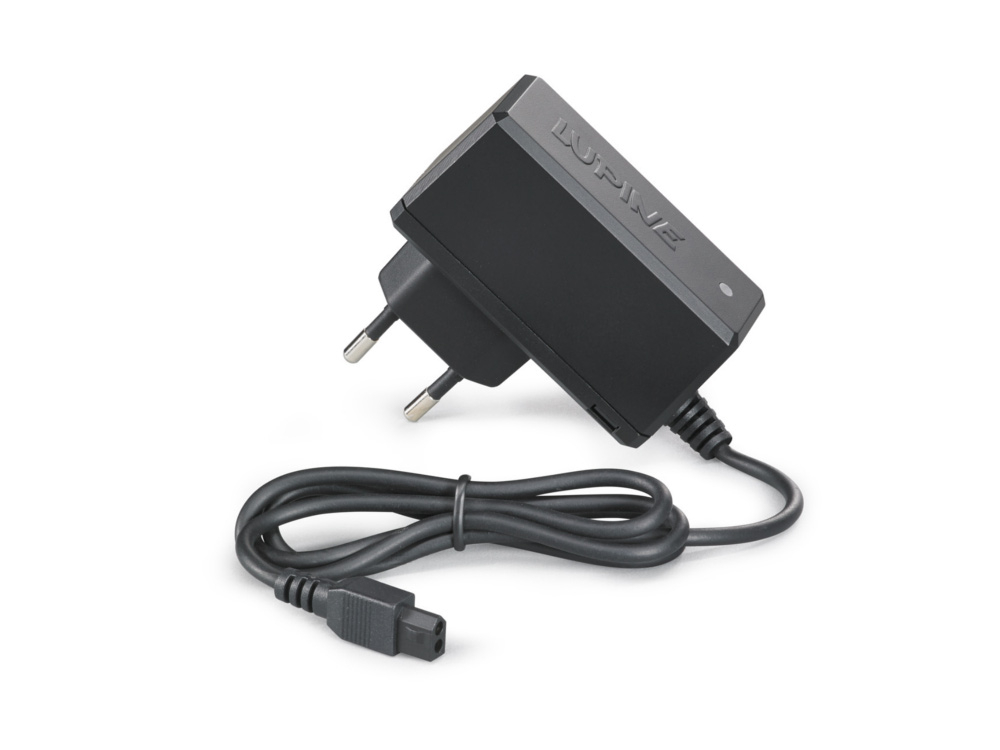

1x Wiesel charger
1x instruction manual
Note: The partially illustrated bicycle with add-on parts is for illustration purposes only and is not included in the scope of delivery.
