LUPINE headlight SL MiniMax AF 2400 lumens | 10.0Ah SmartCore | StVZO
2400 lumens - yes, you read that right. Despite its small dimensions, the SL MiniMax develops an unbelievable performance. With her on the handlebars, night turns into day and you'll probably even be the envy of drivers.
Daytime running lights, glare-free low beam and the switchable high beam in combination with Lupine's proven lens technology make them the first choice for your bike tours in the dark season. It doesn't matter whether you're on the road or off-road, you see everything and you'll be seen at all times. The sophisticated optics ensure a homogeneous light pattern, both at a distance and at close range.
Simple and robust
The SL MiniMax AF is incomparable. The striking, angular design stands out from the crowd in a pleasant way. The reliable electronics are housed in a robust, CNC-milled aluminum housing. There the technology is protected from water and shocks. Cooling fins ensure excellent heat management and increase the lifespan of the LEDs. Thanks to the safe and easy installation directly in front of the stem, the front light sits ideally in the middle.
In addition, Lupine deliberately avoids adhesive connections. This simplifies repairs if a component should have a defect. The Upper Palatinate are therefore fully committed to sustainability and are also pioneers in this direction.
Sensor-controlled "daytime running lights"
Fast bikers are often underestimated by drivers. Therefore, a daytime running light brings a high degree of additional safety. At the same time, the stereo sensor technology, which can be adjusted in stages, scans your ambient light and switches the SL MiniMax AF from "daytime running lights" to low beam in good time. The intelligent electronics always ensure the right illumination.
It is not only a question of a stronger low beam, when switching to high beam the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster journeys and detours on the trail are no longer a problem. For safety and better comfort, the Bluetooth remote control switches back and forth.
Please use the high beams sensibly and dimm your headlights when there is oncoming traffic.
10.0Ah SmartCore battery
The robust 10.0 Ah SmartCore battery contains high-performance electronics and a short press on the control panel displays the current charge level in 20% increments. The advantage is obvious, the capacity can be checked at any time, regardless of whether the battery is in use, is just being charged or has been waiting in the hall for weeks to be used. It can be attached to the frame or under the stem using a Velcro strap. A red light or running light function can be switched on at the push of a button.
Light output - burn time:
High beam 2400 lumens - 3:00 h
Low beam 900 lumens - 8:45 h
Daytime running light 200 lumens - 35:00 h
Lamp head material: Aluminum 6061-T6, CNC-machined
Dimensions (LxWxH): 37 x 69 x 34 mm (lamp head)
Luminosity: 200 lumens (daytime running lights), 900 lumens (low beam), 2400 lumens (high beam)
Beam distance: 260 m
Protection class: IP 67 (waterproof), IK 09 (impact resistance)
Battery: 10.0Ah / 70Wh SmartCore battery
Approval StVZO: yes (~K2258)
Bracket: quick-release bracket for 25.4 mm, 31.8 mm or 35.0 mm handlebar diameter
Weight according to the manufacturer: 100g (lamp head only), 350g (battery)
Scope of delivery:
1x Lupine lamp head SL MiniMax AF 2400 lumens
1x Bluetooth remote control
1x Peppi V5 handlebar mount
1x Peppi V5 XL handlebar mount
1x SL MiniMax AF quick release handlebar mount for 25.4 mm, 31.8 mm or 35.0 mm handlebar diameter
1x 10.0Ah SmartCore battery
1x Velcro coated short
1x Velcro coated long
1x Weasel charger

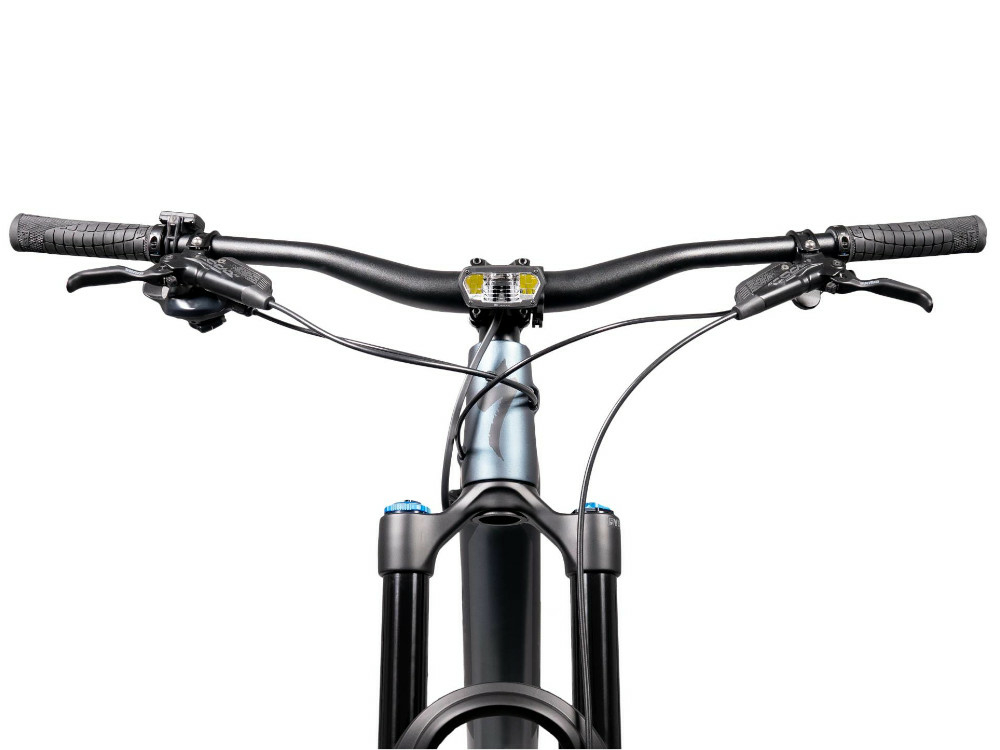

Note: The partially illustrated bike with attachments is for illustration purposes only and is not included in the scope of delivery.
