Description
LUPINE headlight SL AX 14 3800 lumens | 13.8Ah SmartCore | StVZO
3800 lumens - yes, you read that right. The SL AX is the brightest, StVZO approved front light on the German market. With her on the handlebars, night turns into day and you'll probably even be the envy of drivers.
Daytime running lights, glare-free low beam and the switchable high beam in combination with Lupine's proven lens technology make them the first choice for your bike tours in the dark season. It doesn't matter whether it's on the road or off-road, you can see everything and be seen at all times. The sophisticated optics ensure a homogeneous light pattern, both at a distance and at close range.
Simple and robust
The SL AX is incomparable. The striking design stands out pleasantly from the crowd. The reliable electronics are housed in a robust, CNC-milled aluminum housing. There the technology is protected from water and shocks. Cooling fins ensure excellent heat management and increase the lifespan of the LEDs. Thanks to the safe and easy installation directly in front of the stem, the front light sits ideally in the middle.
In addition, Lupine deliberately avoids adhesive connections. This simplifies repairs if a component should have a defect. The Upper Palatinate are therefore fully committed to sustainability and are also pioneers in this direction.
Sensor-controlled "daytime running lights"
Fast bikers are often underestimated by drivers. Therefore, a daytime running light brings a high degree of additional safety. The LEDs placed on the side of the main headlight cannot be overlooked and give you the necessary respect. At the same time, the stereo sensor system, which can be adjusted in stages, scans your ambient light and switches the SL AX from "daytime running lights" to low beam in good time. The intelligent electronics always ensure the right illumination.
high beam
It is not only a question of a stronger low beam, when switching to high beam the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster journeys and detours on the trail are no longer a problem. For safety and better comfort, the Bluetooth remote control switches back and forth.
Please use the high beams sensibly and dimm your headlights when there is oncoming traffic.
Controllable via app
The Lupine SL AX 2023 offers you a variety of setting options. You create individual profiles for your activities and simply use them again when you need them again. In addition to the possibility of creating your own lighting profiles, you can also set the sensitivity and delay of the light sensor or the expected runtime of your battery. You can also operate the lamp via your smart watch or change the profile and your smartphone doesn't even have to be nearby.
13.8Ah SmartCore battery

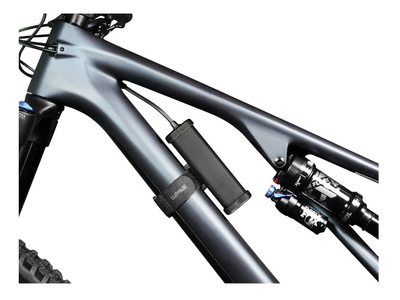

The robust SmartCore battery hides powerful electronics and with a short press on the control panel, the current charge level is displayed in 20% increments. The advantage is obvious, the capacity can be checked at any time, regardless of whether the battery is in use, is just being charged or has been waiting in the hall for weeks to be used. It can be attached to the frame or under the stem using a Velcro strap. A red light or running light function can be switched on at the push of a button.
Light output - burn time:
High beam 3800 lumens / 38 W - 2:40 h
Low beam 900 lumens / 8 W - 12:20 h
Daytime running light 200 lumens / 2 W - 49:00 h
Technical specifications:
Lamp head material: Aluminum 6061-T6, CNC-machined
Dimensions (LxWxH): 45 x 85 x 48 mm (lamp head)
Bulbs: 13x Osram Compact PL LEDs in total
Luminosity: 200 lumens (daytime running lights), 900 lumens (low beam), 3800 lumens (high beam)
Range: 370 m
Protection class: IP 68 (waterproof), IK 09 (impact resistance)
Battery: 13.8Ah / 99Wh SmartCore battery
Approval StVZO: yes
Bracket: quick-release bracket for 25.4 mm, 31.8 mm or 35.0 mm handlebar diameter
Color: Black
Weight according to the manufacturer: 160g (lamp head only), 430g (battery)

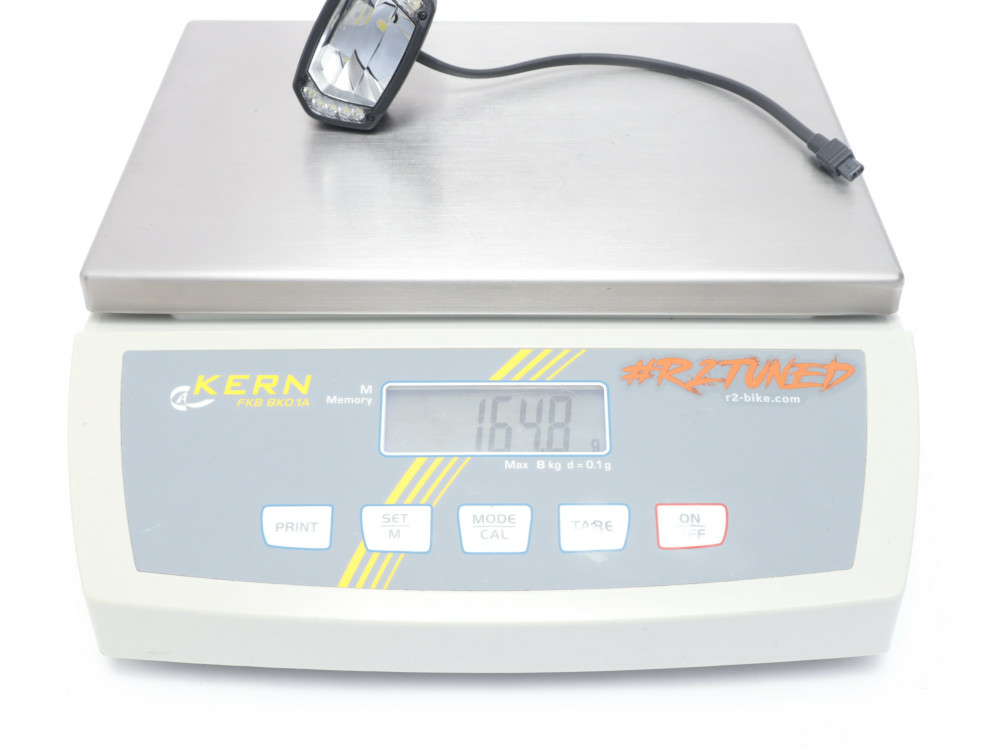

Weight weighed: 663g (ready to drive), 165g (lamp head only)
Scope of delivery:
1x Lupine lamp head SL AX 3800 lumens
1x Bluetooth remote control
1x Peppi V5 handlebar mount
1x Peppi V5 XL handlebar mount
1x SL AX quick release handlebar holder for 25.4 mm, 31.8 mm or 35.0 mm handlebar diameter
1x 13.8Ah SmartCore battery
1x Velcro coated short
1x Velcro coated long
1x Weasel charger
operation manual
Note: The partially illustrated bike with attachments is for illustration purposes only and is not included in the scope of delivery.
Manuals / Downloads
Manual DE/EN
