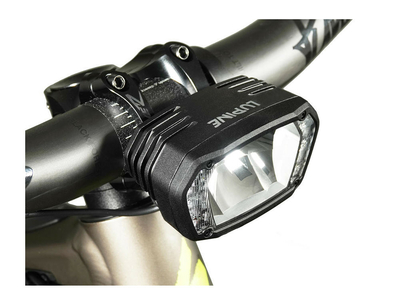

LUPINE e-bike headlight SL X for Brose | 2800 lumens | StVZO
From now on you can delete the word "night" from your vocabulary. With the up to 2800 lumens strong Lupine SL X headlight it is always bright for you. Daytime running lights, glare-free low beam and the switchable high beam in combination with Lupine's proven lens technology make them the first choice for your bike tours in the dark season. It doesn't matter whether it's on the road or off-road, you see everything. The sophisticated optics ensure a homogeneous light pattern, both at a distance and at close range.
This version already has a preconfigured connector for Brose e-bike drives. The connection to the system is very easy. By mounting the lamp head directly in front of the stem with the mono holder, it sits ideally in the middle and illuminates the trail perfectly. In addition, the SL X has real approval for pedelecs under 25 km/h, in terms of the StVZO.
Sensor-controlled "daytime running lights"
E-bikers are often underestimated by drivers. Therefore, a daytime running light brings a high degree of additional safety. The LEDs placed on the side of the main headlight cannot be overlooked and give you the necessary respect. At the same time, the stereo sensor technology, which can be adjusted in stages, scans your ambient light and switches the SL X from "daytime running lights" to low beam in good time. The intelligent electronics always provide the right illumination.

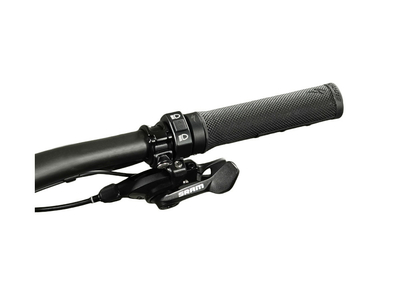

It is not only a question of a stronger low beam, when switching to high beam the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster journeys and detours on the trail are no longer a problem. For safety and for better comfort, the cable remote control switches back and forth.
Please use the high beams sensibly and dimm your headlights when there is oncoming traffic.
The SL X is incomparable. The distinctive design stands out from the crowd. The reliable electronics are housed in a robust, CNC-milled aluminum housing. There the technology is protected from water and shocks. Cooling fins ensure excellent heat management and increase the lifespan of the LEDs.
Material: Aluminum 6061-T6
Dimensions (LxWxH): 45 x 85 x 48mm
Supply voltage: 5 - 15V DC
Consumption: max. 30 W high beam
Power supply: Brose e-bike drive, Brose connector plug
Compatibility e-bike: Brose e-bike drive
Bulbs: 3x Osram Compact PL LED, 6x Osram Compact CL LED
Luminous intensity: max. 2800 lumen high beam
Optics: Fresnel reflector combination
Functions: daytime running lights, low beam, high beam with remote control
Approval StVZO: K license plate, for e-bikes up to 25 km/h
Bracket: Handlebar bracket for 31.8 mm or 35.0 mm handlebar diameter
Color: matt black anodized
Weight according to the manufacturer: 170g
Weight weighed: 211g (ready to ride including cable, handlebar mount and remote control)
Scope of delivery:
1x Lupine e-bike lamp head SL X 2800 lumens incl. 38 cm cable with plug connection and cable remote control
1x SL X handlebar holder for 31.8 mm or 35.0 mm handlebar diameter
1x 80 cm extension cable with connector and open cable ends
1x 16 cm connection cable with open ends and Brose connector
1x cable connector
The partially illustrated bike with attachments is for illustration purposes only and is not included in the scope of delivery.
