Description
LUPINE e-bike headlight SL MiniMax for Bosch BES3 | 2100 lumens | StVZO
2100 lumens - yes, you read that right. Despite its small dimensions, the SL MiniMax develops an unbelievable performance. With her on the handlebars, night turns into day and you'll probably even be the envy of drivers.
Daytime running lights, glare-free low beam and the switchable high beam in combination with Lupine's proven lens technology make them the first choice for your bike tours in the dark season. It doesn't matter whether you're on the road or off-road, you see everything and you'll be seen at all times. The sophisticated optics ensure a homogeneous light pattern, both at a distance and at close range.
Simply

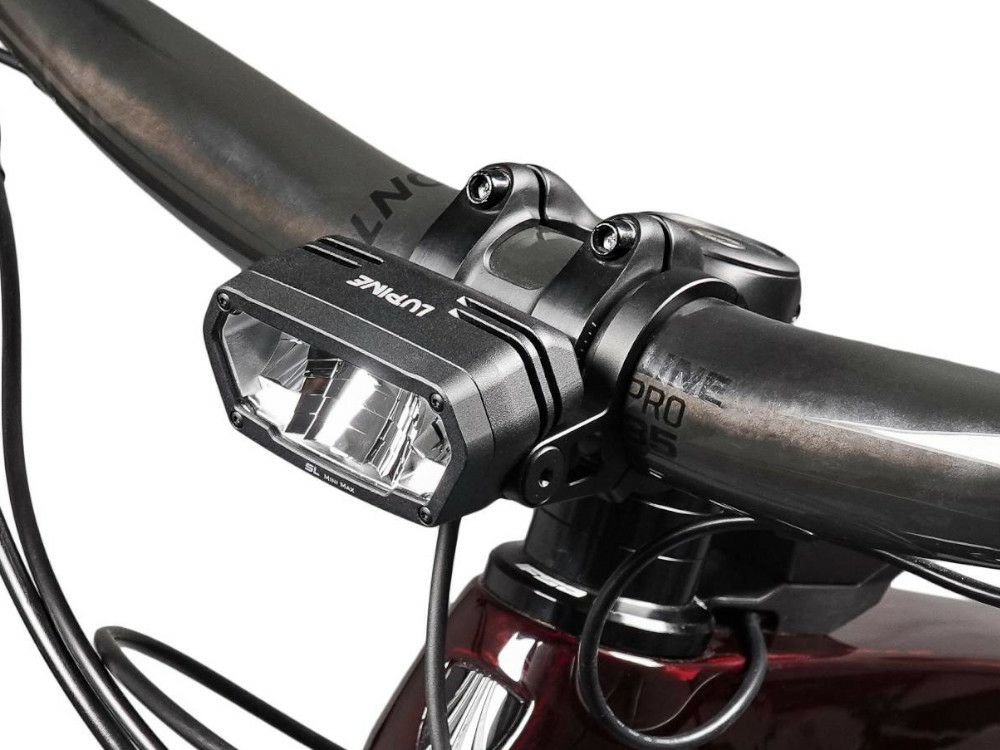

This version already has a pre-configured connector for Bosch BES3 e-bike drives. The connection to the system is very easy. By mounting the lamp head directly in front of the stem with the mono holder, it sits ideally in the middle and illuminates the trail perfectly. In addition, the SL MiniMax has real approval for pedelecs under 25 km/h, in terms of the StVZO.
Robust
The SL MiniMax AF is incomparable. The striking, angular design stands out from the crowd in a pleasant way. The reliable electronics are housed in a robust, CNC-milled aluminum housing. There the technology is protected from water and shocks. Cooling fins ensure excellent heat management and increase the lifespan of the LEDs. Thanks to the safe and easy installation directly in front of the stem, the front light sits ideally in the middle.
In addition, Lupine deliberately avoids adhesive connections. This simplifies repairs if a component should have a defect. The Upper Palatinate are therefore fully committed to sustainability and are also pioneers in this direction.
Sensor-controlled "daytime running lights"
E-bikers are often underestimated by drivers. Therefore, a daytime running light brings a high degree of additional safety. The LEDs placed on the side of the main headlight cannot be overlooked and give you the necessary respect. At the same time, the stereo sensors scan your ambient light and switch the SL MiniMax from "daytime running lights" to low beam in good time. The intelligent electronics always provide the right illumination.
high beam

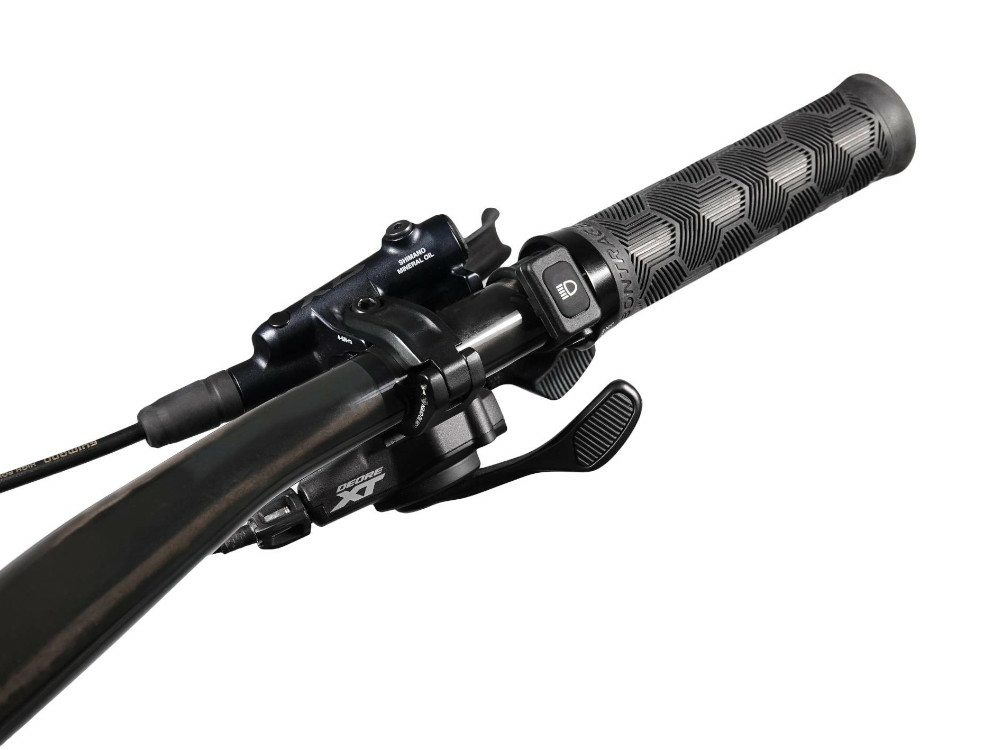

It is not only a question of a stronger low beam, when switching to high beam the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster journeys and detours on the trail are no longer a problem. For safety and for better comfort, the cable remote control switches back and forth.
Please use the high beams sensibly and dimm your headlights when there is oncoming traffic.
Technical specifications:
Material: Aluminum 6061-T6
Dimensions (LxWxH): 37 x 69 x 34mm
Supply voltage: 5 - 15V DC
Consumption: not specified
Power supply: Bosch e-bike drive, Bosch BES3 connector
Compatibility e-bike: Bosch BES3
Illuminant: LED
Luminous intensity: 2100 lumen high beam
Optics: Fresnel reflector combination
Functions: daytime running lights, low beam, high beam with remote control
Communication: -
Approval StVZO: K license plate, for e-bikes up to 25 km/h
Bracket: Handlebar bracket for 31.8 mm or 35.0 mm handlebar diameter
Color: matt black anodized
Weight according to the manufacturer: 100g (lamp head)
Weight weighed:
Scope of delivery:
1x Lupine e-bike lamp head SL MiniMax 2100 lumen incl. 38 cm cable with plug connection and cable remote control
1x handlebar holder for 31.8 mm or 35.0 mm handlebar diameter
1x 80 cm extension cable with connector and open cable ends
1x 16 cm connection cable with open ends and Bosch BES3 connector
1x cable connector
The partially illustrated bike with attachments is for illustration purposes only and is not included in the scope of delivery.
