LUPINE e-bike headlight SL F for Shimano | mono holder | StVZO
It's here, Lupine's e-bike lamp with StVZO approval for road traffic. Glare-free 900 lumen low beam, switchable high beam and Lupine's proven lens technology make them the first choice for your bike tours in the dark season. Your automatic daytime running lights increase your safety on the road.
Easy. Guaranteed.
The installation of the light in front of the stem is extremely easy thanks to the stable aluminum bracket on one side. There she sits ideally in the middle. Installed by a specialist dealer, it receives its power directly from the drive via the light cable. In this way, the guarantee of your e-bike remains completely untouched. In addition, the SL has real approval in terms of the StVZO for pedelecs under 25 km/h.
As small and robust as possible
The SL is incomparable. It owes its unique appearance not only to the striking daytime running lights, but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects the SL from impact, dust and water and meets the IP68 standard with flying colors.
The lamp has a small button on the underside to switch it on and off. Otherwise you can control it via the remote control or the e-bike display.
Sensor-controlled daytime running lights
The adjustable stereo sensor scans your ambient light and switches your SL from daytime running to low beam in good time. The daytime running light of the StVZO models is continuously supported by the main headlight.
high beam
It's not just about a stronger low beam. When switching to high beam, the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster rides and detours on the trail are no longer a problem. For safety and better comfort, the cable remote control switches back and forth.
Please use the high beams sensibly and dimm your headlights when there is oncoming traffic.
light years ahead
At the heart of the Lupine SL are 18 Osram LEDs and the world's first 26° dual aspheric lens system for bicycle lamps. These not only illuminate from afar, but also illuminate the close-up area evenly.
Technical specifications:
Material: Aluminum 6061-T6
Dimensions (LxWxH): 49 x 50 x 48mm
Supply voltage: 6V or 12V DC
Consumption: 1.5 W daytime running lights, 12 W (6 V) or 16 watts (12 V) low beam, high beam
Power supply: Shimano e-bike drive, cable with open ends
Compatibility e-bike: Shimano Steps E8000 / E7000 / E5000 / E6100 / EP8
Illuminant: 18x Osram Compact CL LED
Luminous intensity: 900 lumen low beam, 1300 lumen high beam
Optics: 26° Dual Aspheric Lens System
Functions: daytime running lights, low beam, high beam with remote control
Communication: -
Approval StVZO: K license plate, for e-bikes up to 25 km/h
Bracket: SL F handlebar bracket aluminum on one side for 31.8 mm or 35.0 mm handlebar diameter
Color: matt black anodized
Weight according to the manufacturer: kA
Weight weighed: 135g (incl. cable, remote control and bracket)
Scope of delivery:

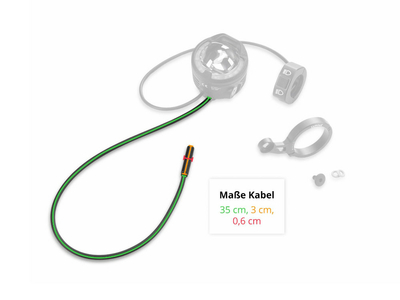

1x Lupine e-bike lamp head SL F incl. 36.5 cm cable with connector and cable remote control
1x SL F handlebar holder aluminum on one side for 31.8 mm or 35.0 mm handlebar diameter
1x 80 cm connector cable with open ends
1x user manual
The partially shown bicycle with attachments and the display are for illustration purposes only and are not included in the scope of delivery.
