LUPINE E-Bike Headlight SL F for Brose | Mono holder | StVZO
It is there, Lupine's e-bike lamp with StVZO approval for road traffic. Glare-free 900 lumens low beam, switchable high beam and Lupine's proven lens technology make it the first choice for your bike tours in the dark season. Your automatic daytime running lights increase your safety on the road.
Simple. Guaranteed.

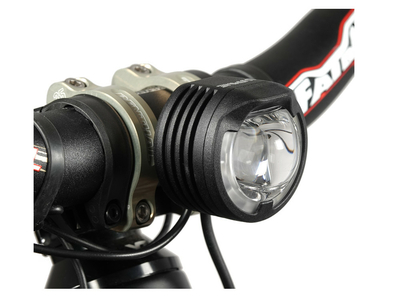

The installation of the light in front of the stem is very easy thanks to the stable one-sided holder made of aluminum. There it sits ideally in the middle. Installed by the specialist dealer, it receives its power directly from the operator via the long light cable. This way, the guarantee of your e-bike remains completely unaffected. In addition, the SL has a real approval in the sense of the StVZO for pedelecs under 25 km / h.
As small and robust as possible
The SL is incomparable. It owes its unique appearance not only to the striking daytime running lights, but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects the SL from impacts, dust and water and meets the IP68 standard with flying colors.
The lamp has a small button on the underside to switch it on and off. Otherwise you can control it via the remote control or the e-bike display.
Sensor controlled daytime running lights
The adjustable stereo sensors scan your ambient light and switch your SL from daytime running to low beam in good time. The daytime running lights of the StVZO models are continuously supported by the main headlight.
High beam
It is not just about a stronger low beam. When switching to high beam, the entire light pattern changes. This means that the area above the glare limit is visible from afar. Faster trips and detours on the trail are no longer a problem either. For safety and convenience, the cable remote control is used to switch back and forth.
Please use the high beam wisely and block out oncoming traffic.
Light years ahead
The heart of the Lupine SL is formed by 18 Osram LEDs and the world's first 26 ° Dual Aspheric Lens System for bicycle lamps. These not only shine far, but also illuminate the close-up area evenly.
Technical specifications:
Material: aluminum 6061-T6
Dimensions (LxWxH): 49 x 50 x 48 mm
Supply voltage: 6 V or 12 V DC, automatic voltage detection
Consumption: 1.5 W daytime running lights, 16 W low beam, high beam
Power supply: Brose e-bike drive, cable with connector
Compatibility E-Bike: Brose drives (S-Drive, Drive S Alu, Drive S Mag)
Light source: 18x Osram Compact CL LED
Luminosity:
6 V: 700 lumens low beam, 1100 lumens high beam
12 V: 900 lumens low beam, 1300 lumens high beam
Optics: 26 ° Dual Aspheric Lens System
Functions: daytime running lights, low beam, high beam with remote control
Communication: -
Approval StVZO: K mark, for e-bikes up to 25 km / h
Bracket: SL F handlebar bracket aluminum on one side for 31.8 mm or 35.0 mm handlebar diameter
Color: matt black anodized
Weight according to the manufacturer: n / a

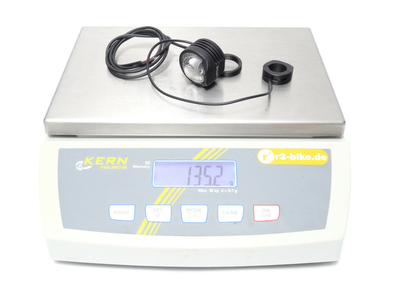

Weight weighed: 135g (including cable), remote control and aluminum bracket aluminum
Scope of delivery:

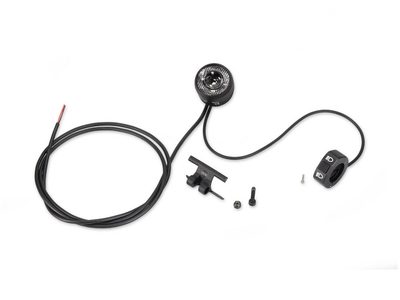

1x Lupine E-Bike lamp head SL F with connection cable for Brose drives including cable remote control
1x SL F handlebar holder aluminum on one side for 31.8 mm or 35.0 mm handlebar diameter
1x instruction manual
The partially illustrated bicycle with attachments and the display are for illustration purposes only and are not included in the scope of delivery.
