LUPINE E-Bike Headlight SL F Nano for Newmen Stems | StVZO
It is here, Lupine's smallest e-bike lamp with StVZO approval for road traffic. Glare-free 600 lumens low beam, switchable high beam and Lupine's proven lens technology make it the first choice for bike tours in the dark season. Your automatic daytime running lights increase your safety on the road.
Simple. Guaranteed.

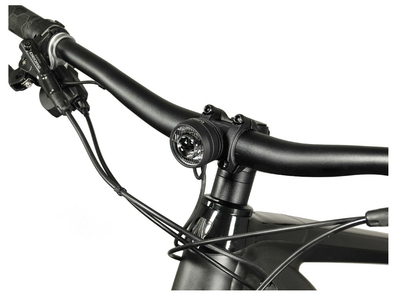

This lamp is integrated directly into special clamps of a Newmen Evolution 318.4 stem. This saves space on the handlebars and there it sits optimally in the middle. Once installed, it receives its power directly from the drive. In addition, the SL F Nano has a real approval in the sense of the StVZO for pedelecs up to 25 km / h.
As small and robust as possible
The SL F Nano is incomparable. It owes its unique appearance not only to the striking daytime running lights, but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects it from impacts, dust and water and meets the IP68 standard with flying colors.
You can switch the SL F Nano on and off using the remote control or the e-bike display.
Sensor controlled daytime running lights
The stereo sensors scan your ambient light and switch your SL F from daytime running to low beam in good time. The daytime running lights of the StVZO models are continuously supported by the main headlight.
High beam
It is not just about a stronger low beam. When switching to high beam, the entire light pattern changes. This means that the area above the glare limit is visible from afar. Faster trips and detours on the trail are no longer a problem either. For safety and convenience, the cable remote control is used to switch back and forth.
Please use the high beam wisely and block out oncoming traffic.
Technical specifications:
Material: aluminum 6061-T6
Dimensions (ØxL): 41 x 30 mm
Supply voltage: 6 V - 12 V DC
Consumption: 2 W daytime running lights, 8 W low beam, 14 W high beam
Power supply: E-bike drive / battery, 110 cm long connection cable
Compatibility E-Bike: open cable ends, direct connection to Shimano Steps; Yamaha, Bosch, Brose with optional adapter cables
Light source: 2x Osram Compact PL LED
Luminosity: 600 lumens low beam, 900 lumens high beam
Optics: Fresnel freeform lens
Functions: daytime running lights, low beam, high beam with remote control
Communication: -
Approval StVZO: K mark, for e-bikes up to 25 km / h

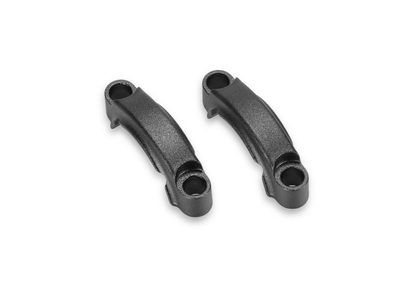

Bracket: only on Newmen Evolution 318.4 stems with special clamps (optionally available)
Color: matt black anodized
Weight according to the manufacturer: 52g (only lamp head)

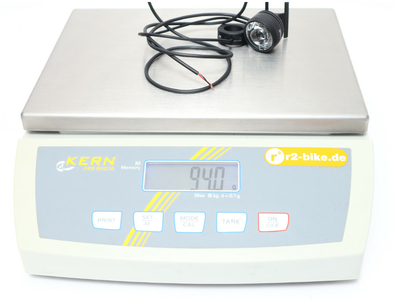

Weight weighed: 94g (including cable remote control)
Scope of delivery:
1x Lupine E-Bike lamp head SL F Nano with open cable including cable remote control
1x bracket for Newmen Evolution 318.4 stems
1x instruction manual
Note: The partially illustrated bicycle with attachments and the Newmen clamps are for illustration purposes only and are not included in the scope of delivery.
