Description
LUPINE e-bike headlight SL F Classic for cargo bikes | StVZO
Lupine's e-bike lamp with StVZO approval for road traffic comes here in the classic version. Glare-free low beam, switchable 1300 lumen high beam and Lupine's proven lens technology make them the first choice for your bike tours in the dark season. Your automatic daytime running lights increase your safety on the road.
The version for the cargo bike has an overly long cable for the remote control. This allows you to enjoy all the advantages of this light even at the back, where you usually sit with this type of bike.
Safe assembly
The SL F Classic is attached to the fork bridge or, in the case of a cargo bike, to the steerer tube. It sits securely there and illuminates everything evenly in the middle. You also save space on the handlebars to be able to mount other accessories.
The light has a 2 m long cable with open ends for mounting on the e-bike drive. This must be connected to a connection cable suitable for the respective system. This means that the SL F Classic can still be used if you change your bike.
As small and robust as possible
The SL is incomparable. It owes its unique appearance not only to the striking daytime running lights, but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects the SL from impact, dust and water and meets the IP68 standard with flying colors. In addition, it has real approval in terms of the StVZO for pedelecs under 25 km/h.
The lamp has a small button on the underside to switch it on and off. Otherwise you can control it via the remote control or the e-bike display.
Sensor-controlled daytime running lights
The adjustable stereo sensor scans your ambient light and switches your SL from daytime running to low beam in good time. The daytime running light of the StVZO models is continuously supported by the main headlight.
high beam
It's not just about a stronger low beam. When switching to high beam, the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster journeys and detours on the trail are no longer a problem. For safety and for better comfort, the cable remote control switches back and forth.
Please use the high beams sensibly and dimm your headlights when there is oncoming traffic.
light years ahead
At the heart of the Lupine SL are 18 Osram LEDs and the world's first 26° dual aspheric lens system for bicycle lamps. These not only illuminate from afar, but also illuminate the close-up area evenly.
Technical specifications:
Material: Aluminum 6061-T6
Dimensions (LxWxH): 49 x 50 x 48mm
Supply Voltage: 6V-15V
Consumption: 1.5 W daytime running lights, 9 W low beam, 16 W high beam
Power supply: e-bike drive
Compatibility e-bike: all e-bikes with at least 12 watt light output (specific connection cable not included in the scope of delivery)
Illuminant: 18x Osram Compact CL LED
Luminous intensity: 900 lumen low beam, 1300 lumen high beam
Optics: 26° Dual Aspheric Lens System
Functions: daytime running lights, low beam, high beam with remote control
Communication: -
Approval StVZO: K license plate (K1552), for e-bikes up to 25 km/h
Bracket: Bracket for fork crown or on the steerer tube
Color: matt black anodized
Weight according to the manufacturer: 100g (lamp head)
Weight weighed:
Scope of delivery:
1x Lupine e-bike lamp head SL F incl. 2 m power supply cable with open ends
1x wired remote control with 257 cm long cable
1x SL F mount
1x user manual

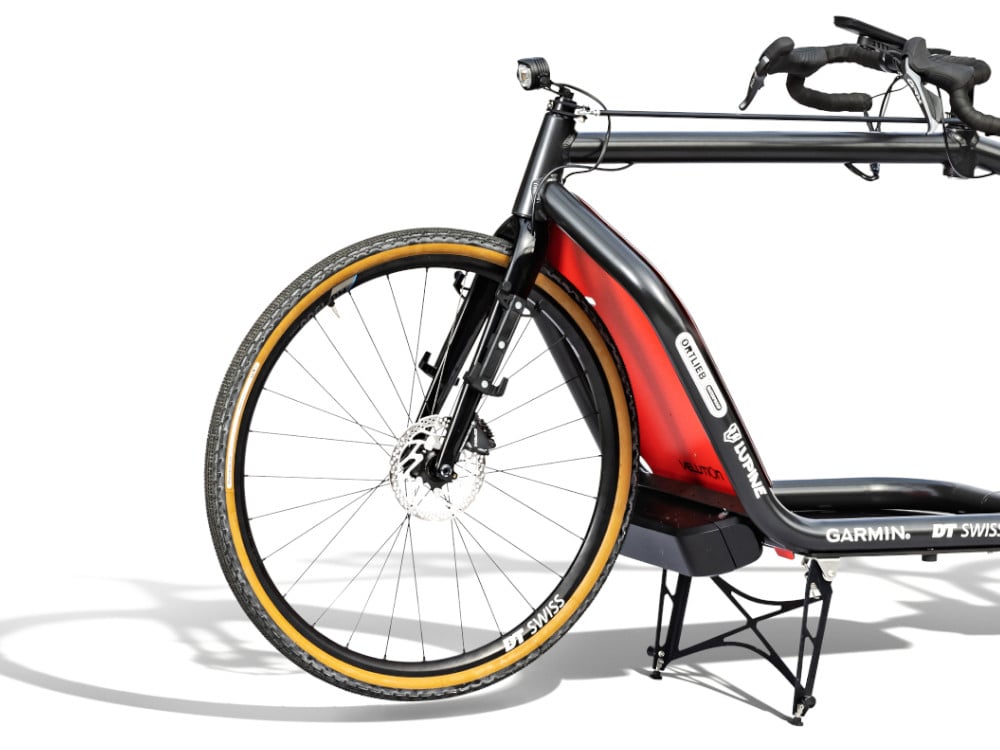

The partially illustrated bike with attachments is for illustration purposes only and is not included in the scope of delivery.
Manuals / Downloads
Manual
