LIGHTWEIGHT Frame Set Urgestalt Carbon | WEISS ED

LIGHTWEIGHT Frame Set Urgestalt Carbon | WEISS ED LIGHTWEIGHT Frame Set Urgestalt Carbon | WEISS ED LIGHTWEIGHT Frame Set Urgestalt Carbon | WEISS ED LIGHTWEIGHT Frame Set Urgestalt Carbon | WEISS ED
  • Our price : 4.890,00 €
  • including 19% VAT., no shipping costs
  • List Price: 4.890,00 €
Loading ...

  • Size

Description

Lightweight Frame Set primal Carbon | WHITE ED

The original form of Lightweight evident after a long development work and secrecy finally at its best! The White Edition Lightweight provides here an exceptionally sytlische optics! Matching the best impellers passion was also applied to the smallest detail to create not only a frame, but DEN frame. The developers at Lightweight course, have all the ingredients collected currently "State of the Art":

- Power flow righteous carbon fiber structure
- Tapered head tube for high stiffness and precise steering maneuvers
- Asymmetrical seat tube and chain stays for comfort while stiffness
- Integrated Zügverlegung for mechanical and electrical circuits
- Wider PF86,5 Tretlagergehäusestandard for high rigidity
- Oval seatpost with integrated clamping as part of a shapely Integration

Without a suitable geometry, these data are of course of little worth. Lightweight can draw on years of experience of various professionals here. So they developed a sporty geometry but does not leave the comfort aspect except eyes. Thus the original form ensures even over long distances for maximum driving pleasure.


Technical specifications:

Material: carbon, aluminum
Wheel Size: 28 ", 700C, ETRTO 622
Crankset: Pressfit BB86,5 (86.5 x 41 mm)
Headtube: Tapered 1.5 "- 1 1/8"
Max. Tyre size: 25 mm
Seatpost: oval with 280 mm length, 350 mm at 60 cm frame size
Saddle frame: round, oval or Mono Link (saddle clamps supplied)
Frame size: 48, 51, 54, 56, 58, 60 cm
Rider weight limit: 120 kg (including driver's clothing and possibly luggage.)
Finish: Carbon UD
Color: carbon, black / white

Weight: 790g (Gr 54 cm.), 320g fork 1340g (including fork, headset and seatpost.)

Delivery: Frame, headset, seatpost, mounting paste, mounting accessories for all common switching groups, manual

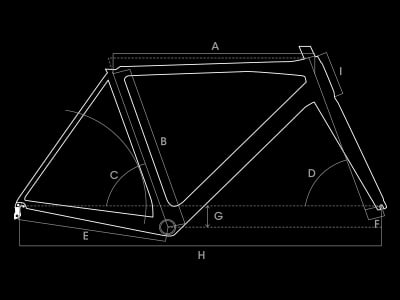

Geometry data:




48 51 54 56 58 60
A top tube length in mm 515 530 545 560 575 590
B seat tube length in mm 460 490 520 540 560 580
C seat angle in degrees 74.5 74 73.5 73.5 73 72.5
D Head tube angle in degrees 71.5 72 73 73 73.5 73.5
E chainstay length in mm 405 405 405 405 405 408
F fork offset in mm 45 45 45 45 45 45
G Bottom Bracket in mm 72 72 69 69 67 67
H in mm wheelbase 962.3 970.6 974.8 989.9 996.4 1009
I head tube length in mm 110 120 140 155 175 195
