INDUSTRY NINE hub set MTB Hydra Classic Center Lock BOOST | Freewheel SRAM XD
The Industry Nine Hydra Classic hubs are a real gem on every bike. Developed and produced in Asheville / North Carolina, they set themselves apart from the competition with many small technical refinements. With their externally sealed bearing and stable axle , they are optimally protected against environmental influences and also ideally equipped for downhill use. Beveled spoke flanges help to reduce the forces on the sensitive spoke heads and thus prevent spoke breaks.
However, the pawl freewheel on the rear hub is revolutionary. It consists of a drive ring with 115 teeth and 6 staggered pawls. These are designed so that as soon as one of them has a frictional connection, the others can also absorb torque shortly thereafter. This means that a single handle can only carry the power for a very short time. The big plus of this system is an extremely short free travel of 0.52 °, which brings clear advantages in technical passages or when accelerating hard. In addition, the fine grid leads to a unique background noise on the impeller.
The maintenance effort is also relatively low. You can disassemble and clean the hub without tools.
We would be happy to make you an offer for a complete custom wheelset with rims and spokes of your choice. Just send us an email to [email protected]!
technical data front hub:
intended use : Cross Country, Marathon, All Mountain, Enduro
Material: aluminum, steel
axle type : 15x110 mm plug axis (BOOST / outboard)
Number of holes: 28 or 32 holes
Brake disc mount: Center Lock
bearing : 2x industrial warehouse
Spoke type: Standard spokes (J-Bend)
Max.admissible spoke tension: kA
maximum system weight: n / a
Color: Black
Weight according to the manufacturer: 165g
Weight weighed: 139.7g
technical data rear hub:
intended use : Cross Country, Marathon, All Mountain, Enduro
Material hub: aluminum, steel
Material freehub body: aluminum
axle type : 12x148 mm plug axis (Boost / outboard)
Number of holes: 28 or 32 holes
Brake disc mount: Center Lock
Freewheel compatibility: 11-speed and 12-speed SRAM XD MTB
Freewheel type: 6 pawls, 115 notches (engagement every 0.52 °)
bearing : 4x industrial warehouse
Spoke type: Standard spokes (J-Bend)
Max.admissible spoke tension: kA
maximum system weight: n / a
Color: Black
Weight according to the manufacturer: 286g

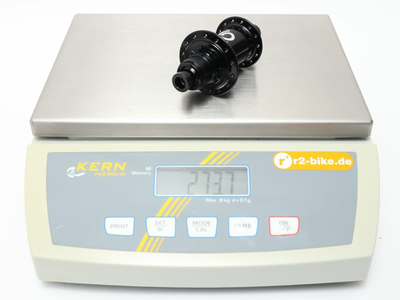

Weight weighed: 273.7g
Weight hub set: 413.4g
Scope of delivery: 1x INDUSTRY NINE hub set MTB Hydra Classic Center Lock BOOST | Freewheel SRAM XD
