Description

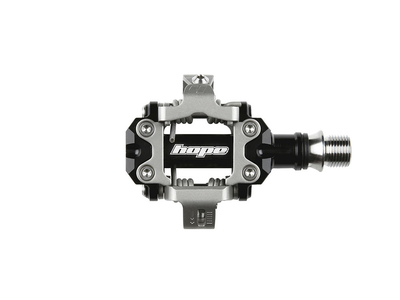

HOPE Pedals Union Clip Pedal TC | Trail clip
Beautiful CNC-milled pedals from the milling specialists from Barnoldswick.
Hope has a suitable pedal for all ambitious trail riders. The pedal body, carved out of the full block, rotates around a stable axle made of high-strength Cr-Mo steel and has a large contact area with the shoe for good power transmission and safe
Stand. The click mechanism and the stainless steel cleats are insensitive to external influences and will accompany you on your tours for many years. bearing taken over from the F20 pedal is effectively shielded from the elements by special seals. Water and dirt that can lead to premature bearing wear have no chance of getting inside! 3 deep groove ball bearings and a self-lubricating slide bearing ensure smooth and easy running.
Two versions of the cleats are available: You can choose between 4 ° freedom of movement / 12 ° release angle or 5 ° freedom of movement / 13 ° release angle. Both cleats have a side play of 2 mm so that your foot is always optimally positioned.
So that the pedals match your bike optically, they are available in 6 different anodized colors. The logos are lasered, typical for Hope.
Technical specifications:
intended use : MTB XC, Trail, Gravel
Pedal axle material: Cr-Mo steel
Material pedal body: aluminum, CNC milled
Material click mechanism: stainless steel
Pins: four per side
Bearings: Sealed industrial / plain bearing combination
Freedom of movement: 4 ° or 5 ° (depending on the cleat)
Release angle: 12 ° or 13 ° (depending on the cleat)
Release hardness: adjustable
Q factor / axis length: 55 mm
Compatibility sole: Shimano SPD (MTB)
Compatibility pedal plate: Hope MTB Cleat
Weight Limit: -
Colors: black, silver, red, purple, orange, blue
Weight according to the manufacturer: 437g
Weight weighed by yourself:
Scope of delivery:
1x pair of HOPE pedals Union Clip Pedal TC | Trail clip
1x pair of cleats 4 ° freedom of movement / 12 ° release angle
1x pair of cleats 5 ° freedom of movement / 13 ° release angle
