Description
HOPE disc brake Tech 4 X2 | separate silver
Tech 4 Levers
Not only has the Tech 4 brake lever changed a lot in terms of looks, but Hope has also taken a big step forward in terms of technical properties. The expansion tank has been enlarged and redesigned. Thanks to the new design, the Tech 4 brake lever can transmit 30% more braking power. For a particularly light lever feel, the spring rate has been reduced and a guide for the brake piston is used. The ease of movement is supported by an industrial ball bearing at the pivot point. The brake lever has become longer for better modulation and more control on the trail.
As before, the lever width and the pressure point can be adjusted without tools. The two-piece clamp for attachment to the handlebar simplifies assembly, since nothing has to be removed from the handlebar for assembly. Matching Hope Matchmakers for SRAM triggers and only Shimano EV triggers can be attached to a thread on the underside of the reservoir.
X2 pliers
The filigree X2 pliers are the result of development work with COSMOSWorks FEA (Finite Element Analysis). This makes it possible to reduce weight, improve aesthetics and create the ideal partner for the tech lever. The pliers are milled from 2014 T6 aluminum as usual. The diameter of the pistons has been increased in order to be able to transmit more braking power to the brake disc. Sealed bleed nipples allow for easier maintenance and the extended fluid outlet simplifies line routing. The brake pads, which can be mounted from above, also contribute to easy handling. For a super elegant look and long durability, the brake is completely anodized and has lasered HOPE logos.
Steelflex line
These noble cables ensure an improved pressure point, longer service life and an ingenious look. Furthermore, tearing off or kinking of the line in the event of a fall is effectively prevented. The only disadvantage is the small additional weight.
Hybrid Pistons
Hybrid pistons made of steel and phenol are easier to move and require less maintenance. At the same time, the use of phenol ensures better heat dissipation under extreme stress.
Technical specifications:
Area of intended use : XC, marathon, tour, trail
Material caliper: aluminum 2014 CNC milled
Material brake lever: aluminum
Material housing: Aluminum 2014 CNC milled
Material fastening screws: steel
Piston: 2
Brake Mount: Postmount 6"
Brake disc: -
Brake medium: DOT 5.1
Brake line: plastic or steel flex
Brake pad: organic
Design brake lever: 1-finger
Reach adjustment: yes, via adjustment wheel
Pressure point adjustment: yes, via adjustment wheel
Mounting: one-sided
Front brake lever: left
Rear brake lever: right
Clamp: divided
Line length: VR 900 mm or HR 1650 mm
Silver
standard line
Weight according to the manufacturer: from 249g without accessories

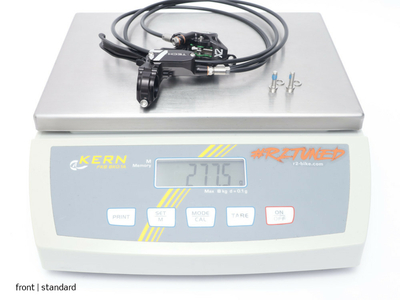

Weight weighed: 278g or 277g (front - back) including accessories
steel braided line
Weight according to the manufacturer: from 287g without accessories
Weight weighed: kA
Scope of delivery: completely filled and bled brake with racing brake pads (green) without disc / adapter | additional Allround brake pads (red) are included in the scope of delivery
