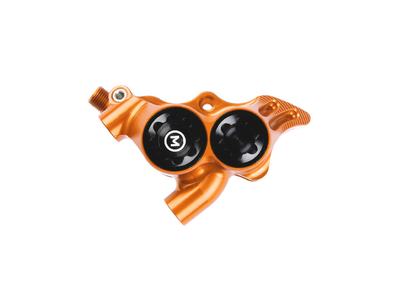

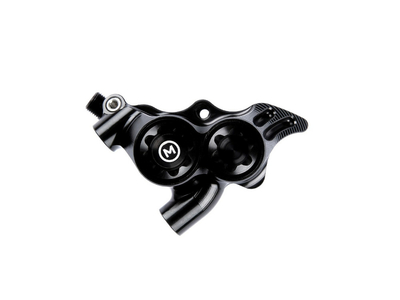

HOPE brake caliper RX4+ Flat Mount FM Std for Shimano / Campagnolo | mineral oil
For gravel bikes and racing bikes, HOPE has the right brake solution in its range, the proven English art of milling paired with technical understanding led to the HOPE RX4+ brake caliper. The current version shines with larger pistons (2x 14 mm and 2x 16 mm to 2x 11 mm and 2x 14 mm), an improved angle of the brake line connection and new attachment variants for the flat mount standard.

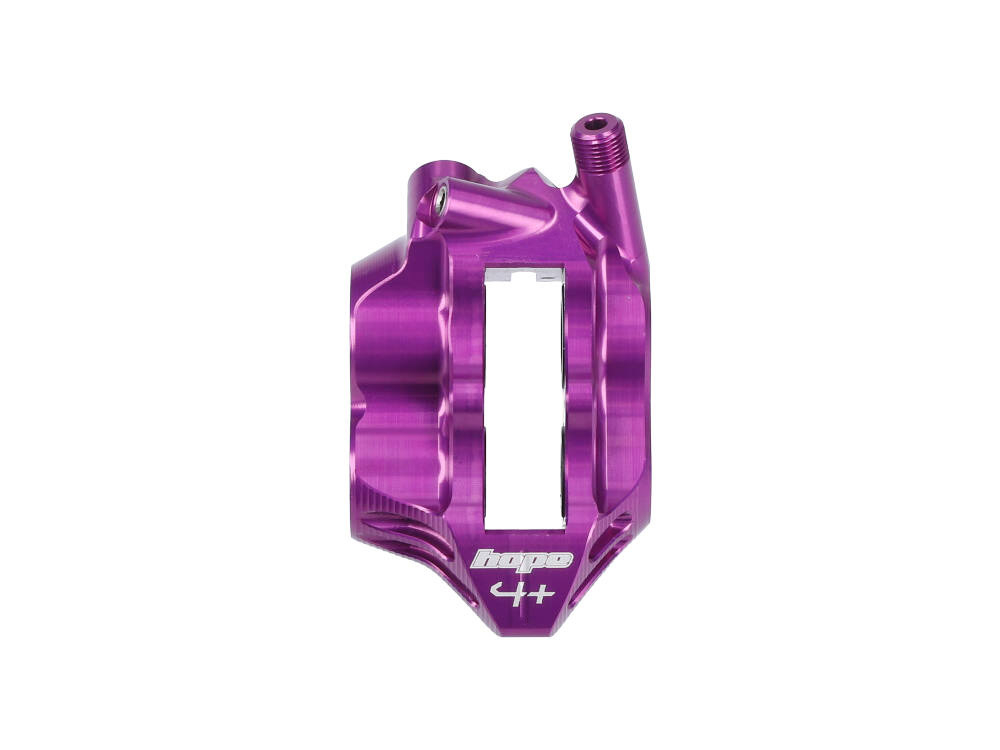

Perfectly milled from the solid, the RX4+ brake caliper in monoblock design not only leads to increased performance compared to two-piece solutions, but also prevents unwanted chafing or "juddering" with the right pads and discs while at the same time having a better pressure point. Another advantage is the four-piston solution, with two smaller and two larger slave pistons. The two smaller ones lead to a quick application of the brake pad, the two larger ones maximize the braking power. This allows you to finely regulate the braking force even on difficult surfaces.
The HOPE RX4+ brake caliper fits all current hydraulic Shimano and Campagnolo road bike brake levers, the exchange is very easy, as you only have to exchange your existing brake caliper for the HOPE RX4+ brake caliper. So you can update to the HOPE RX4+ brake caliper on all Shimano and Campagnolo road bike groupsets (Shimano Dura Ace, Ultegra, 105, GRX and Campagnolo Super Record, Record, H11).
Note: HOPE RX4+ brake calipers are only approved for the mineral oils used by Shimano and Campagnolo!
intended use : Gravel, racing bike, touring bike
Material caliper: Aluminum 2014 T6
Material piston: phenolic plastic
Material fastening screws: stainless steel
Number of pistons: 4 (2x 16 mm and 2x 14 mm, slimline)
Compatibility brake medium: with Shimano brakes (Shimano mineral oil), with Campagnolo brakes (Magura Royal Blood)
Compatibility brake lever: Shimano Dura Ace Di2 R9170 | Dura Ace R9120 | Ultegra Di2 R8070 | Ultegra R8020 | 105 R7020 | Di2 R785 | RS685 | GRX RX810/RX600/RX400 | GRX RX815 Di2/RX817 Di2, Campagnolo Super Record | record | H11
Compatibility brake line: Shimano or Campagnolo
Brake pads: Hope brake pads resin (organic) and sintered metal
Mounting: Flat Mount Standard (FM Std) front or rear
Colour: black, silver, red, blue, orange or purple
Weight according to the manufacturer: kA
Weight weighed: 108.2g (including brake pads)

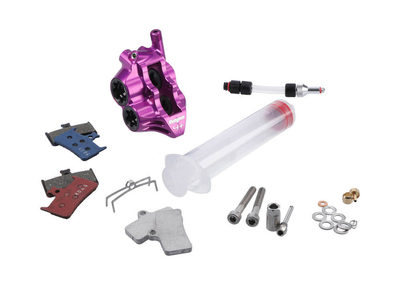

Scope of delivery:
1x HOPE brake caliper RX4+ Flat Mount FM Std for Shimano / Campagnolo | mineral oil
1x HOPE brake pads sintered metal for Shimano / Campagnolo
1x HOPE brake pads organic for Shimano / Campagnolo
1x spring + pad retaining screw
1x connection kit for brake line
1x bleeding kit without brake medium
1x mounting kit for brake caliper
Manuals / DownloadsMounting Instruction
