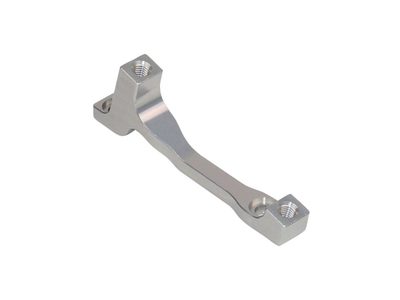

HOPE Adapter Model H Postmount +23
HOPE disc brake adapter for Postmount brake calipers on Postmount fork/frame mount , allows for example the use of 183 mm (front) and 183 mm (rear) brake discs. The HOPE disc brake adapters have the typical Hope milling marks and give your bike a technical look. Matching steel screws and washers are included, the screws are without screw locking device, order them separately if required.
The adapter extends the standard brake disc size of the fork or rear triangle by 23 mm. Please check your fork or rear triangle which post mount variant is installed. Based on the standard brake disc size, the adapter increases the brake disc size by the specified information in millimeters.
PM5 = 140mm standard size
PM6 = 160mm standard size
PM7 = 180mm standard size
PM8 = 200/203mm standard size
Technical specifications:
Material adapter: aluminum
Material screws: steel
Extension in front: +23 mm
Rear extension: +23 mm
mount Fork: Post Mount PM
mount triangle mount: Post Mount PM
Brake mount : Post Mount PM

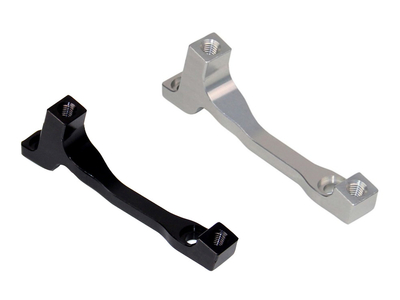

Colour: black or silver
Weight according to the manufacturer: approx. 21g (without screws)
Weight weighed: 22g
Scope of delivery: 1x HOPE adapter model H Postmount +23
