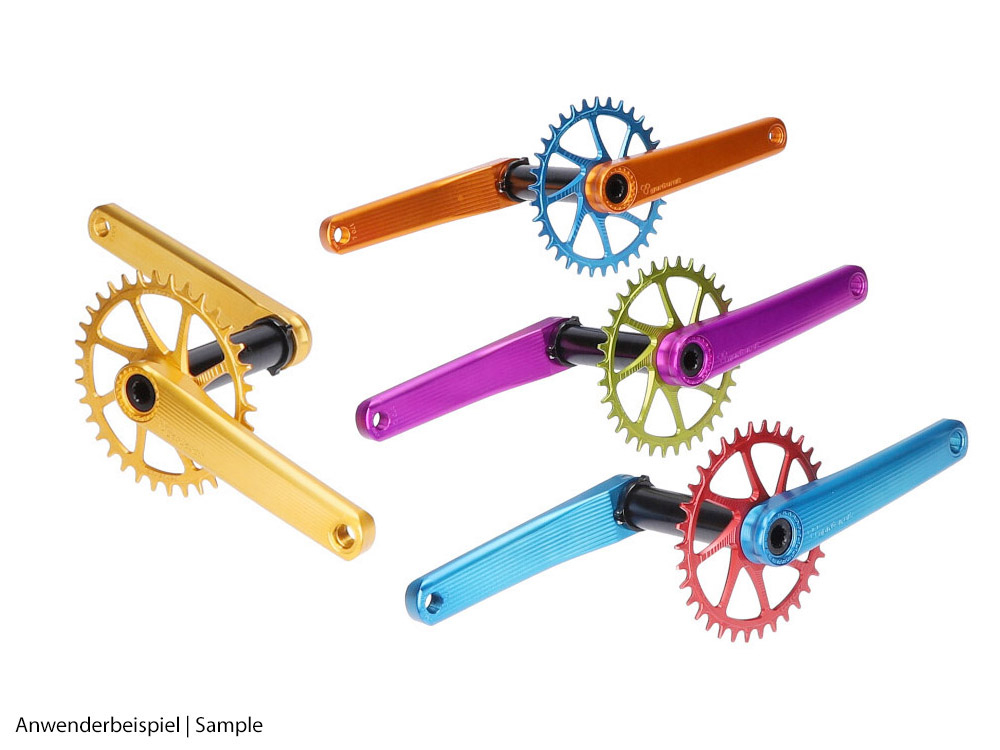

GARBARUK XC Crank | violet
With the new development made of aluminium, the Polish manufacturer Garbaruk offers its first crank set that is beautiful in its simplicity and light.
Many years of experience in the design and manufacture of light and beautiful chainrings have made it possible to reduce the weight of the crank so much that it can even hold a candle to some well-known carbon cranks. The two-piece design of the crank arms allowed weight to be reduced without having to compromise on rigidity. In addition, this structure makes it possible to technically and visually adapt the crank to your bike. A highlight is the selection of different anodized colors. It is possible to keep the crank and chain ring in the same color or to combine different colors.
To assemble the crankset, you need nothing more than a 12 mm, a 2 mm Allen key and a Shimano Hollowtech II tool (TL-FC34 bottom bracket assembly SM-BB93). Garbaruk recommends a torque of 50 Nm for mounting the crank arms and 35 Nm for attaching the chain ring. The crank arms are easily removed using the integrated crank arm puller and a standard bottom bracket wrench for cartridge bearings.
Area of intended use : MTB XC
Material crank arms: 7075-T651 aluminum, CNC machined
Material shaft: 7075-T651 aluminum
Materials Spider: -
Material crankshaft: aluminum
Crankshaft diameter: 30 mm
Crank lengths: 165mm, 170mm, 175mm
Chainring Mount: Cannondale Direct Mount
Chainring attachment: Lockring (tool holder TL-FC34, 35 Nm are recommended)
chain line : depends on the chainring
Q Factor: 170mm
Bottom bracket compatibility: RaceFace 30 mm
Compatibility chains: depending on the chainring
max. rider weight: not specified
Weight according to the manufacturer: 391g (170mm)
Weight weighed: 415g (170 mm, with spacer)
Scope of delivery:
1x GARBARUK XC crank | violet, with pedal washers, chainring lock ring, preload ring
2x locking ring purple
