GARBARUK Chainring Melon oval 1-speed oval narrow-wide CX BCD 110 44 Teeth violet

GARBARUK chainring Melon oval 1-way narrow-wide CX LK 110

Garbaruk is a company from Ukraine, which has its roots in motorsports.
Design and production of tuning parts for engines and undercarriages belonged to the Garbaruk company. The experience and knowledge gained have allowed cycling enthusiasts to take part in the production of bicycle parts. All steps from design, production to surface refinement take place under one roof.

7075-T6 Aluminum from Germany is the raw material from which the chainrings from Garbaruk are CNC-milled. The chainrings have some features that differ from competitors. In order to keep the chain securely in place even without chain guide, the teeth have a special profile of narrow and wide teeth alternately. To ensure this even under very rough and rough conditions, the teeth of the Garbaruk chainrings are manufactured approximately 40% longer than normal teeth. Furthermore, the teeth are shaped in such a way that even in muddy conditions the chainring works very well. We recommend the use of a switch with increased cage tension (Sram Type 2-3, Shimano Shadow +), which keeps the chain reliably in position and prevents a jumping of the chain.

The ovalisation of the chain chain increases the performance by varying the drive train and optimizing the resistance. When walking with the legs, the natural strengths and weaknesses are brought into harmony. In this way a better utilization of the stronger muscle groups is achieved and in the weaker muscles a compensation in the working path (lower stroke) is created.

The Garbaruk chainring for compact cranks with 110 millimeters of bolt circle diameter is best suited for the conversion of a cyclocross wheel to a single drive. In this application, the chainring can play out its very good self-cleaning and the optimal support of the chain.


Technical specifications:

Material: 7075-T651 Aluminum
Technology: Narrow Wide, Melon (oval)
Hole bolt circle diameter : 110 mm Compact (5-hole)
Fitting: 5-arm spider
Number of teeth: 34, 36, 38, 40, 42, 44, 46, 48, 50 or 52
Compatibility cranks : 5-arm compact
Compatibility chain: 9x, 10-speed , 11-speed
chain line : n / a
Offset: Standard
Adjustment possibilities: none
Range (ovalization): 12%
Timing: 108 ° to TDC (OT)
Color: black, red, blue, green, violet, orange

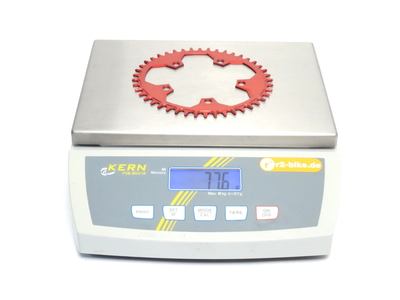

Weights: 48g (34T), 51g (36T), 54g (38T), 60g (40T), 68g (42T), 78g (44T)


Scope of delivery: 1x GARBARUK chainring melon oval 1-way narrow-wide CX LK 110
