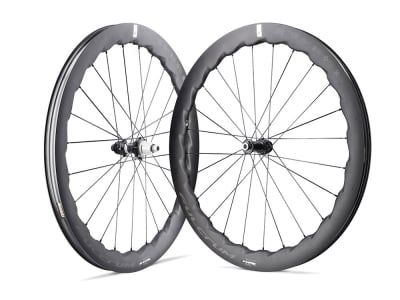

FULCRUM wheelset 28" Sharq GR Carbon Center Lock
The development of the Sharq GR was the result of intensive analysis of race data and experience from international gravel races. The aim was to develop a wheel that enables high speeds on demanding surfaces and at the same time offers more control, precision and a noticeable aerodynamic advantage. The focus of the development was the new 2-Wave rim with a 30 millimeter rim width and mini-hook, which is optimally matched to wide tires. It improves their shape, enlarges the contact area and increases stability. The variable rim profile with a height of 47 and 52 millimetres optimizes aerodynamics, reduces susceptibility to crosswinds and minimizes air resistance.
The rims are made from high-quality FF100 carbon fibers. Thanks to the closed, holeless rim bed, no tape is required for tubeless mounting. Fulcrum has also broken new ground with the spokes and has developed the A3RO steel spokes with a width of 3 millimetres and a thickness of 0.8 millimetres especially for the Sharq wheelsets, with which the wheels achieve considerable aerodynamic advantages. The spoke seats on the hubs and the spoke base have been specially optimized to prevent the spokes from twisting. To ensure the long-term stability of the spoke structure, the wheels are constructed with a 2:1 spoke ratio without any contact points between the spokes.
Technical data
Area of application: Gravel
Wheel size: 28" (ETRTO: 622 x 30 mm)
Rim type: clincher (clincher and folding tires)
Brake type: for disc brakes only
Brake rotor mount: Center Lock
Hub material: Aluminum, steel
Rim material: UD Carbon
Spoke material: Steel
Inner rim width: 30 mm
Outer rim width: 36 mm
Rim height: 47 to 52 mm
Offset: no
Number of holes: 24 holes (per rim)
Spokes: 48x A3RO 0.8 × 3 mm, straight-pull blade spokes (black)
Lacing pattern: front: 2:1 lacing | rear: 2:1 lacing
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearing: 2x steel cone ball bearings
Rear bearing: 4x steel cone ball bearings
Freehub compatibility: 11-, 12-speed Shimano Road; 12-/13-speed SRAM XDR; 12-speed Shimano Micro Spline or 13-speed Campagnolo N3W
Freewheel type: pawl freewheel with 3 pawls (each pawl additionally toothed 3 times), 36 ratchets
recommended tire width: 47 - 76 mm, optimized for 47 - 50 mm, also compatible with certain 45 mm tires
max. air pressure:
maximum system weight: 120 kg
tubeless compatible: yes
Valve hole: Presta valve (SV)
Color rims: black, UD carbon matt, logos - silver/grey
Color spokes: black
Color hubs: black matt
Weight according to manufacturer: 1550g
Weight self-weighed: 1544g (wheelset); 711g (front wheel); 833g (rear wheel); 10.2g (2x tubeless valves); 12g (1x center lock ring)
Scope of delivery:
1x front wheel
1x rear wheel
2x tubeless valves
2x Center Lock rings
2x tire levers
1x manual
