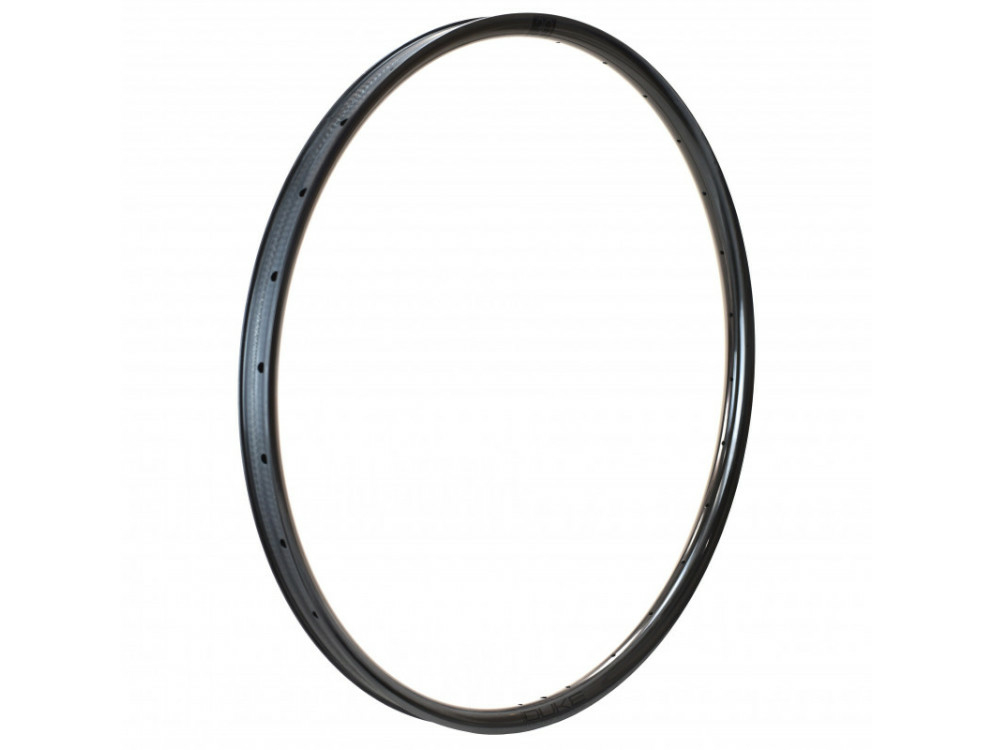

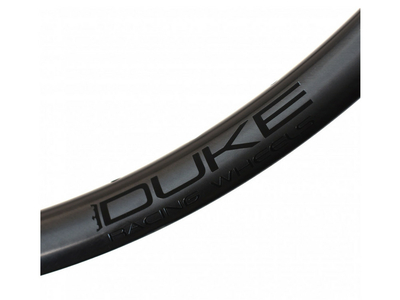

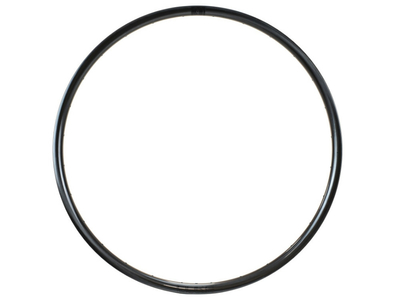

DUKE rim 29" Crazy Jack SLS4 6Ters 30 UD carbon
Duke has managed to improve the Crazy Jack compared to the SLS3 version. In doing so, they have once again pushed the apparently technically possible limits. A 30mm wide rim weighing just 371g is a direct challenge to the competition.
How did the French do this? They took a closer look at the individual elements of the rim and looked for optimization options. In particular, a new resin was used. This not only made it possible to slim down, but also to increase impact resistance at the same time. Similar to the SLS3 production process, post-processing or painting is not necessary here either.
The rim flange is hookless and reinforced. This avoids damage in the event of punctures. In addition, the anti-burp technology prevents the tire from slipping or jumping off the rim and thus possible air loss.

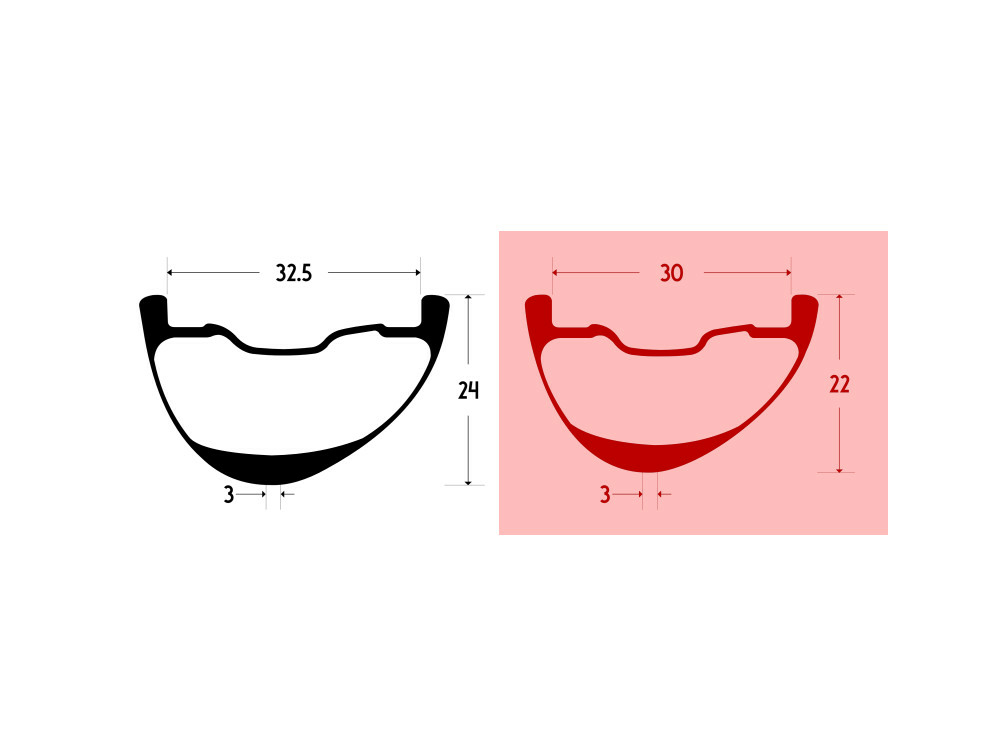

The rim has an asymmetrical rim profile, which allows a more even angle of the spokes. This optimization of the spoke angle brings with it a multitude of advantages. The spoke tension on both sides can be better adjusted to each other, which is beneficial to the durability of the spokes and the entire wheel. The lateral stiffness, which is normally directional, is also adjusted so that the impeller itself becomes stiffer.
With the "6Ters" concept, Duke goes its own way. The cross-section of the rims is different on the front and rear wheel. At the front, the larger inner width allows for more grip and rigidity, while at the rear, emphasis was placed on impact resistance and comfort.
The SLS4 6Ters 30mm rim is intended for the rear wheel and represents the ideal combination with the 33mm on the front wheel.
2 year warranty and lifetime crash replacement on UD carbon rims
Duke selects the materials used very carefully in order to be able to offer you the best possible product. Therefore, the quality standards for all products, subcontractors and partners are very strict. Duke guarantees for a period of two years that the rims offered will not have any hidden defects. However, improper assembly or use of the products will void the warranty.
In the event of an accident or serious fall, violent impacts can damage the rim and make it impossible to use. Therefore, Duke offers a lifetime crash replacement for its UD carbon rims. In exchange, you will receive a discount of 50% on the rim you have purchased.
We would be happy to make you an offer for a complete custom wheelset with hubs and spokes of your choice. Please send us an email to [email protected]!
Technical specifications:
intended use : trail, all-mountain, all-mountain e-bike
Materials: carbon
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
ETRTO: 622x30
EARTH: 598mm
Internal width: 30mm
External width: 36mm
Rim Height: 22mm
Offset: 3.0mm (asymmetric)
Number of holes: 28 or 32 holes
tubeless capable: yes
ASTM classification: n/a
recommended tire width: 2.1" - 2.8" (53 - 71 mm)
maximum tire pressure: max. 2.2 bar (at 2.2" tire width)
Maximum system weight: 120 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1200 N
Features: asymmetrical rims for optimal spoke tension
Valve hole bore: 6 mm (SV)
Finish: UD carbon satin finish
Color: Black
Weight according to the manufacturer: 365g

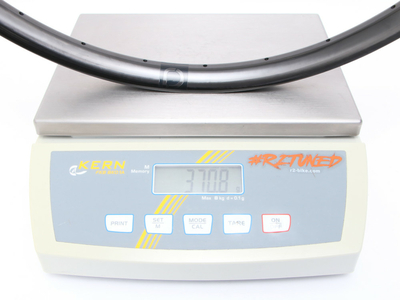

Weight weighed: 371g (28 holes)
Scope of delivery: 1x Crazy Jack SLS4 6Ters 30 UD carbon
