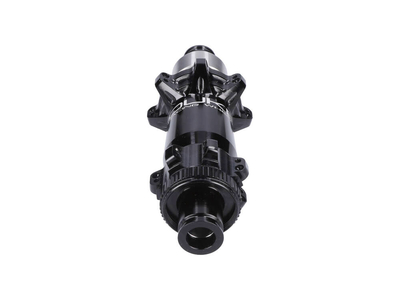

DUKE rear hub MADMAX SP 28-hole | 12x148mm BOOST Center Lock - SRAM XD
The hubs from the manufacturer DUKE from France combine high-quality technology, durability and a modern design!
Duke's MADMAX SP hubs are the perfect pivot point for light, stiff and durable wheels.
The CNC machined and then black anodized hub body made of 7075 T6 aluminum rotates around four 6902 2RS deep groove ball bearings, which axle and are double sealed. All bearings are placed as far outboard as possible for stable support, which creates additional rigidity. The geometry of the spoke flanges has been optimized in terms of diameter and spoke angle in order to reduce the stress on the spoke heads to a minimum.
With a weight of 202g, the DUKE MADMAX SP hub is a lightweight among the BOOST rear wheel hubs. A special feature of the hub is the freewheel body made of titanium grade 5 (Ti6Al4V). Thanks to the excellent properties of the material, the teeth could be milled directly into the freewheel body and the number of moving parts was reduced to a special spring and the toothed washer in the hub body. The 70-fold toothing results in a maximum idle travel of 5.14° and is extremely large with a diameter of 35 mm. The large diameter allows optimal torque transmission and the hub is therefore also approved for use in e-bikes.
A fundamental point for the reliability of your new hub is the protection from the elements. The special seal between the hub shell and the freewheel body guarantees optimal protection against dirt and water with smooth running that is second to none.
From the first draft to the finished hub, all steps are completely realized in Europe. Selected partners turn, mill, anodize and laser engrave the individual parts of the hub according to Duke's strict specifications. The final assembly and final quality control takes place in the French region of Vendeé and guarantees you a perfect product at all times.
Duke underlines its high quality standards by granting a 5-year guarantee on their hubs.
We would be happy to make you an offer for a complete custom wheelset with rims and spokes of your choice. Please send us an email to [email protected] !
intended use : Cross Country, Marathon, CX, Gravel, Road bike
Material: 7075 T6 Aluminum, Grade 5 Titanium (Ti6Al4V), Steel
Installation width: 148 mm
axle type : 12 x 148 mm BOOST thru axle
Number of holes: 28 holes
Brake disc mount: Center Lock
Freehub Compatibility: SRAM XD
Freewheel type: 2 toothed discs with 70x toothing
bearing : 4x industrial bearings (6902)
Gasket: Rubber Gaskets
Spoke type: straight pull spokes
Spoke tension: 1300N
Maximum driver weight: no information from the manufacturer
Weight according to the manufacturer: 202g

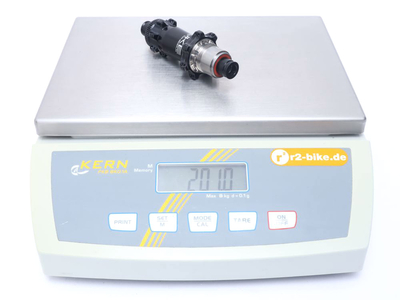

Weight weighed: 201g
Scope of delivery: 1x DUKE rear wheel hub MADMAX SP 28-hole | 12x148mm BOOST Center Lock - SRAM XD
