Description

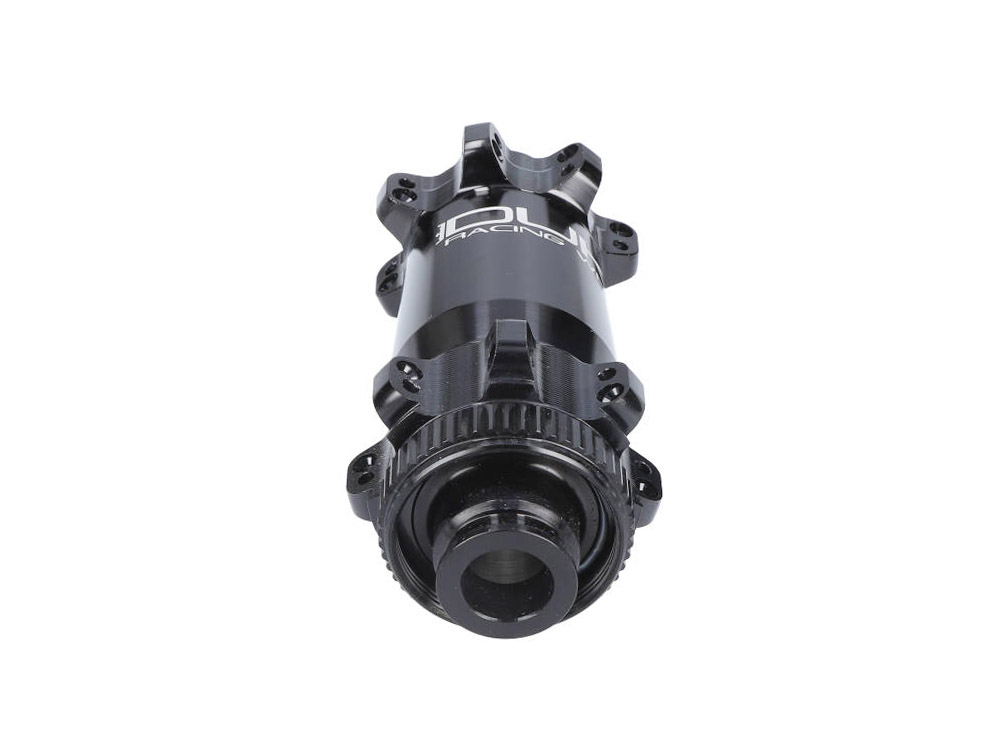

DUKE front hub MADMAX SP 28-hole | 12x100mm center lock
The hubs from the manufacturer DUKE from France combine high-quality technology, durability and a modern design!
Duke's MADMAX SP hubs are the perfect pivot point for light, stiff and durable wheels.
The CNC machined and then black anodized hub body made of 7075 T6 aluminum rotates around two 6803 2RS deep groove ball bearings, which sit on a stiff 17 mm axle and are double sealed. The bearings are placed as far outboard as possible for stable support, which creates additional rigidity. The geometry of the spoke flanges has been optimized in terms of diameter and spoke angle in order to reduce the stress on the spoke heads to a minimum.
A fundamental point for the reliability of your new hub is the protection from the elements. The special seal between the hub shell and the freewheel body guarantees optimal protection against dirt and water with smooth running that is second to none.
From the first draft to the finished hub, all steps are completely realized in Europe. Selected partners turn, mill, anodize and laser engrave the individual parts of the hub according to Duke's strict specifications. The final assembly and final quality control takes place in the French region of Vendeé and guarantees you a perfect product at all times.
Duke underlines its high quality standards by granting a 5-year guarantee on their hubs.
We would be happy to make you an offer for a complete custom wheelset with rims and spokes of your choice. Please send us an email to [email protected] !
Technical specifications:
Area of intended use : CX, Gravel, Road bike
Material: 7075 T6 aluminum, steel
Installation width: 100 mm
axle type : 12 x 100 mm thru axle
Number of holes: 28 holes
Brake disc mount: Center Lock
bearing : 2x industrial bearings (6803)
Spoke type: straight pull spokes
Spoke tension: 1300N
Maximum driver weight: no information from the manufacturer
Color: Black
Weight according to the manufacturer: 94g
Weight weighed: 94g
Scope of delivery: 1x DUKE front wheel hub MADMAX SP 28-hole | 12x100mm center lock
