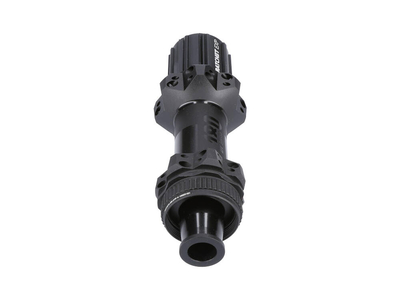

DT SWISS rear hub MTB 180 Straightpull Center Lock 12x148 mm thru axle | Freewheel Shimano 11-speed | 28 holes
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the DT Swiss 180 hubs, which have been further developed with the new RATCHET EXP technology. The super reliable freewheel system ensures direct power transmission without losses. The smooth-running SINC Ceramic ball bearings offer you another decisive advantage; they ensure minimal rolling resistance. The stiffness of the hub body serves to distribute the load on the spokes more evenly. Driving and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim.
DT Swiss hubs stand for the simplest construction and maximum reliability. The latter is achieved with the 180 hubs with smooth-running, durable hybrid ceramic bearings. Thanks to the use of complex seals and bearing sizes adapted to the loads, the hubs can do without adjusting the bearing play. The driver does not have to worry about the function of the hubs for years! Should a service be necessary after tens of thousands of kilometers, the hubs can be dismantled and serviced within a few minutes without special tools thanks to the DT Swiss plug-in system.
Technical specifications:
intended use : mountain bike
Material hub: aluminum, steel
Material freehub body: aluminum
axle type : 12x148 mm thru-axle Boost
Number of holes: 28 holes
Brake disc mount: Center Lock
Freewheel compatibility: 8-, 9-, 10-, 11-speed MTB Shimano | SRAM
Freewheel type: 2 tooth lock washers, 36 notches
bearing : smooth-running SINC ceramic ball bearings
Spoke type: straight pull spokes
Max. permissible spoke tension: 1200 N
maximum system weight: 130 kg
Color hub: black matt
Color decals: black
Weight according to the manufacturer: 193g

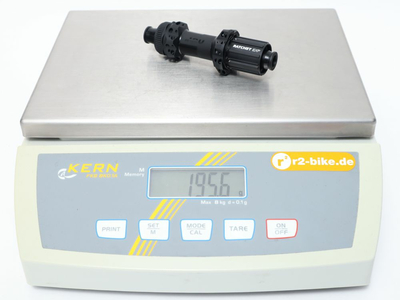

Weight weighed: 196g
Scope of delivery: 1x rear hub DT SWISS MTB 180 Straightpull Center Lock 12x148 mm thru axle | Freewheel Shimano 11-speed | 28 holes
