DT SWISS rear wheel 29" HXC 1501 Spline One LS 30 mm hybrid | E-Bike | 12x148 mm BOOST thru axle | Center Lock | freewheel Shimano SRAM XD
Since the company was founded, it has been the mission of DT-Swiss to equip bikers with wheels that are perfectly adapted to their respective purpose. The booming eMTB segment in particular is developing rapidly these days and the requirements for eMTB wheels are just as wide as the possible uses of modern e-bikes. The Hybrid LS (Light Support) wheels are perfectly designed for use on light eMTBs. They offer ambitious riders agile wheels with direct handling and enough reserves for the toughest trails. Due to the lower system weight of light eMTBs, the weight of the Hybrid LS wheels could also be reduced.
The HXC 1501 LS series was developed for riders who are looking for the ultimate performance on a light eMTB. Equipped with carbon rims, adapted 240 hubs with Ratchet EXP oversized freewheel system, they reliably transfer the torque generated by the driver and motor to the ground with almost no loss.

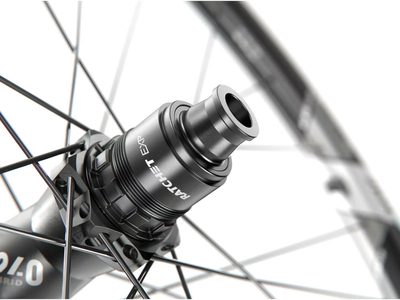

DT Swiss 240 EXP OS Hybrid hubs
In order to be prepared for the higher loads in E-MTB use, the current 240 EXP hub generation has been specially adapted. The newly designed, enlarged hub body has improved durability and can better absorb the higher drive and braking torques. Larger bearings distribute the forces that occur more evenly and prevent premature wear.

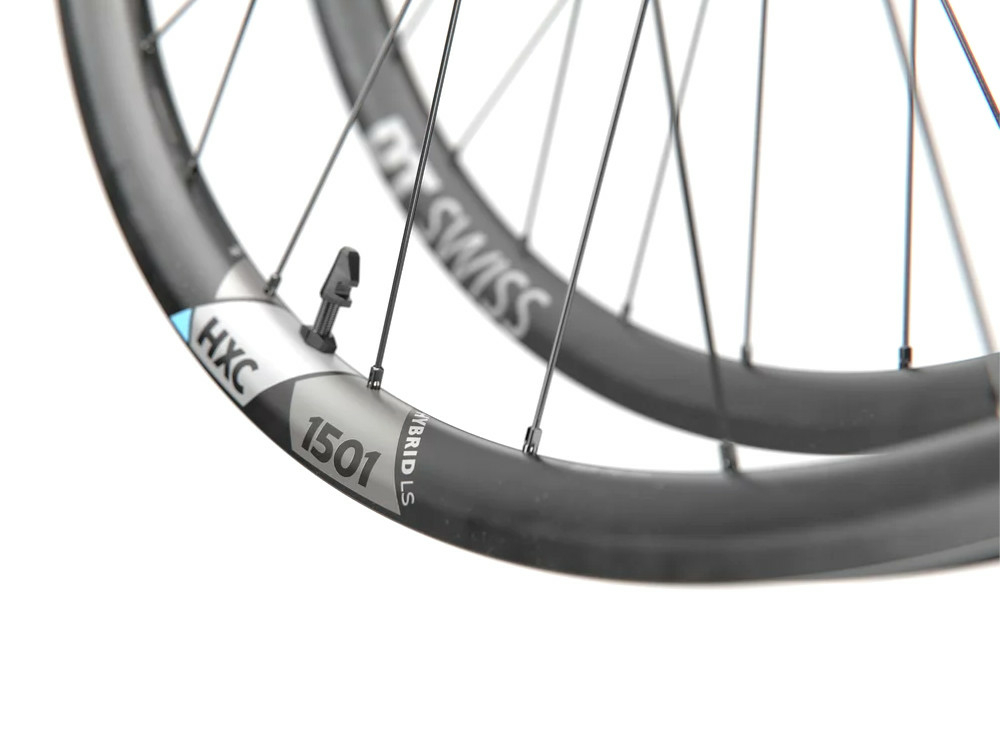

The high-quality carbon rims with their large inner width of 30 millimeter wide tires offer very good support at low air pressures. Its hookless design makes it even more resistant to punctures and allows a maximum system weight of 130 kg (rider, luggage and bike). The rim profile has of course been designed for tubeless use. The matching tubeless tape and tubeless valve are already included in the scope of delivery.

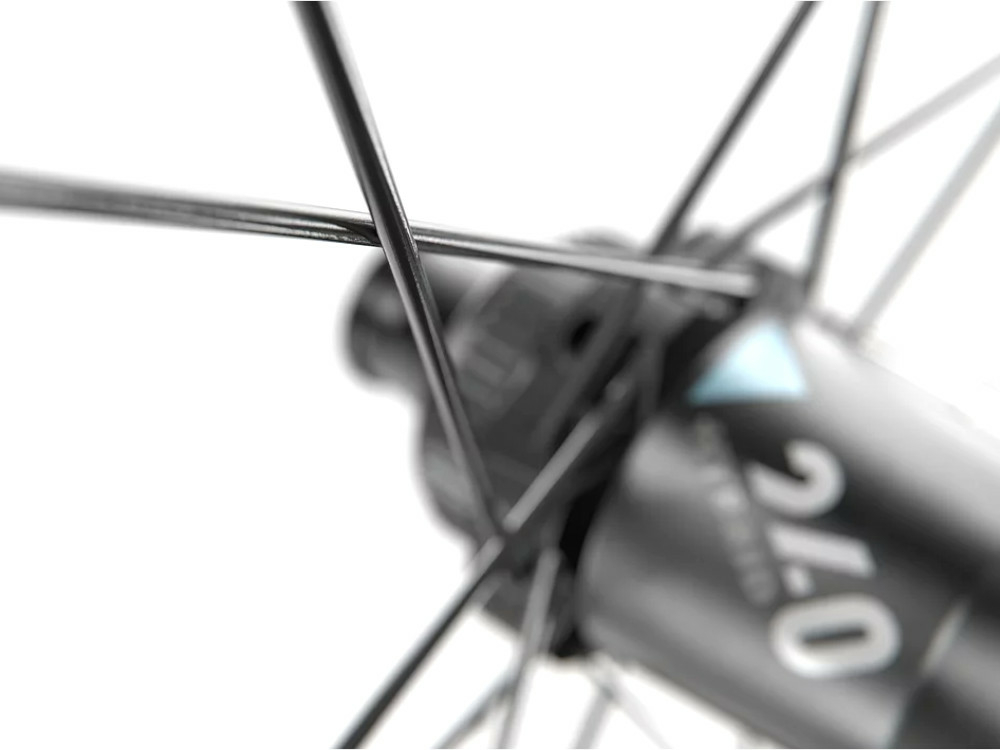

DT Swiss Hybrid 4 spokes
With a diameter of 1.8 millimeters, the hybrid 4 spokes are thicker than conventional MTB spokes and can absorb the higher braking torques better. In this way, they ensure permanent lateral and torsional rigidity of the wheels. Compared to the DT-Swiss Hybrid 1 spokes, the diameter of the spoke heads has been reduced to 2.15 millimeters. As a result, the total weight of the spokes is only slightly higher than that of standard spokes, without compromising on rigidity and durability when used on light eMTBs.
Pro Lock technology
During the Pro Lock process, a patented two-component adhesive is injected into the nipple thread and enables the construction of extremely durable wheels. As soon as the nipples are screwed in, the adhesive is activated and fully hardens at room temperature after approx. 6 - 7 hours. Repeated re-centering is still possible without any problems, although the adhesive strength decreases slightly with each re-centering.
Area of intended use : e-bike
Wheel size: 29" (ETRTO: 30-622)
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
Brake disc mount: Center Lock (6-hole adapter included)
Material rim: carbon
Internal width: 30mm
External width: 36mm
Rim Height: 25mm
Number of holes: 28 holes
Axle standard : axle type mm BOOST thru axle
bearing : 4x industrial bearings
Spokes: DT Hybrid 4 | straight pull
Freewheel Compatibility: 11-, 12-speed SRAM XD
Freehub Type: Ratchet EXP OS; 2 toothed discs, 30 notches
tubeless capable: yes
recommended tire width: kA
Maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
Colour: black, logos grey
Weight according to the manufacturer: 921g
Weight weighed: kA
Scope of delivery:
1x rear wheel
1x aluminum tubeless valve
1x tubeless tape 32mm
1x 6-hole brake disc adapter
