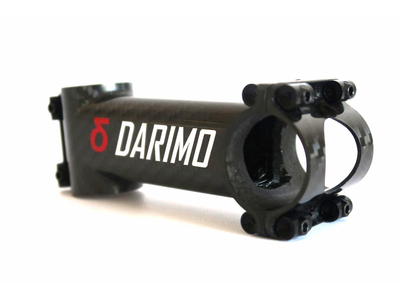

DARIMO CARBON stem IX4 3K glossy | 6 °
A little tip in advance: Please always mount this stem properly. There is a risk that it could float away due to its low weight. At 74 g with a length of 100 mm, this is really phenomenal. Anyone who wants to build an ultra-light bike should consider the Darimo stem.
But how do the Spaniards manage to produce such a flyweight? The bright minds from Valencia have tinkered a lot and save material wherever they can. But of course they also pay attention to safety and rigidity. For the latter, the design plays an important role. Round stems have high torsional rigidity, while square cross-sections are very stable in the vertical direction. As a result, a combination of both forms was chosen, which combines the respective advantages. It also has a striking look and is an eye-catcher on your bike.
The removable front panel is held in place by 4 titanium screws. This also enables the easy assembly of aero racing bike handlebars.
Note: The Darimo stem is a high-end product and requires conscientious work when it is attached. All torques and driver weights prescribed by the manufacturer must be strictly observed. This increases the service life of the stem and serves your safety.
intended use : racing bike or mountain bike (cross country, marathon)
Material stem: 3K carbon
Material screws: titanium
Handlebar clamp Ø: 31.8 mm
Steerer diameter: 1 1/8 "
Lengths: 80, 90, 100, 110, 120 or 130mm
Angle: +/- 6 °
Clamping height of the steerer tube: 46 mm
Clamp width handlebar: 46 mm
Tool holder: 4 mm hexagon socket
Max. permissible torque: 3.5 Nm
Weight limit: 90 kg (driver + clothes + luggage)
Finish: 3K carbon glossy
Color: Black; Decals: white / red
Weight according to the manufacturer: 74g (100 mm)

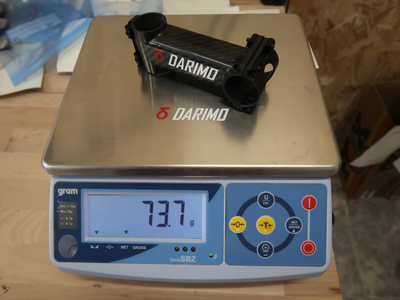

Weight weighed: 74g (100mm)
Scope of delivery: 1x DARIMO CARBON stem IX4 3K glossy | 6 °
