    DARIMO CARBON Stem IX2 UD matte | -6°

    Item no.:
    39229

    Product weight:65g
    Manufacturer:
    Darimo Carbon Fibre
    359,00 €
    Finance from 22 EUR / Monat
    UVP: 359,00 €
    including 19% VAT. excl. Shipping costs / shipping time info
    • available from stock
    Length

    Article details

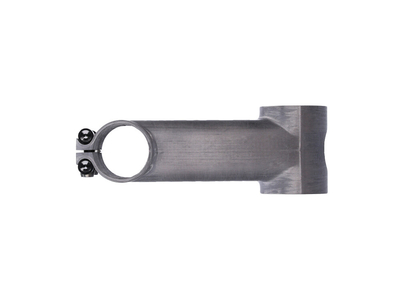

      DARIMO CARBON stem IX2 UD matt | -6 °

      A small tip in advance: Please always mount this stem properly. There is a risk that he might float because of its low weight. This is really phenomenal with 65 g at a length of 80 mm. Anyone who wants to build an ultralight bike should consider the Darimo stem.

      But how do the Spaniards manage to produce such a flyweight? The clever heads of Valencia have done a lot of work and save material where they can. Of course, they also pay attention to safety and rigidity. For the latter, especially the shaping plays an important role. Round stems have a high torsional stiffness, while more square cross sections are very stable in the vertical direction. As a result, a combination of both forms was selected, which combines the respective advantages. He also has a striking look and is an eye-catcher on your bike.
      The handlebar is held to the front panel by two titanium screws. This could be compared to the IX4 version continue to save some weight.

      Hints:
      The Darimo stem is a high-end product and requires careful cultivation. All torques and rider weights specified by the manufacturer must be strictly adhered to. This increases the life of the stem and serves your safety.
      When using it on the racing bike, it should be noted that the top link does not exceed a diameter of 31.8 mm due to the non-removable front cap. Otherwise there is a risk of damaging the handlebar and stem. Aerobics are therefore excluded.


      Technical specifications:

      intended use : Mountainbike (Cross Country, Marathon)
      Material stem: UD carbon
      Material screws: titanium
      Handlebar clamp Ø: 31.8 mm
      Steerer diameter: 1 1/8 "
      Lengths: 60, 70, 80, 90, 100 or 110 mm
      Angle: -6 °
      Clamping height of the fork shaft: 47 mm
      Clamp width handlebar: 46 mm
      Tool holder: 4 mm hexagon socket
      Max. permissible torque: 3.5 Nm
      Weight restriction: max. 90 kg (driver + clothing + luggage)
      Finish: UD carbon matt
      Color: Black; Decals: black

      Weight according to manufacturer: 66g (100 mm)
      Weight weighed: 65g (80mm)


      Scope of supply: 1x DARIMO CARBON stem IX2 UD matt | -6 °

      Note:
      The illustrated handlebars are for illustrative purposes only and are not included.
