Description

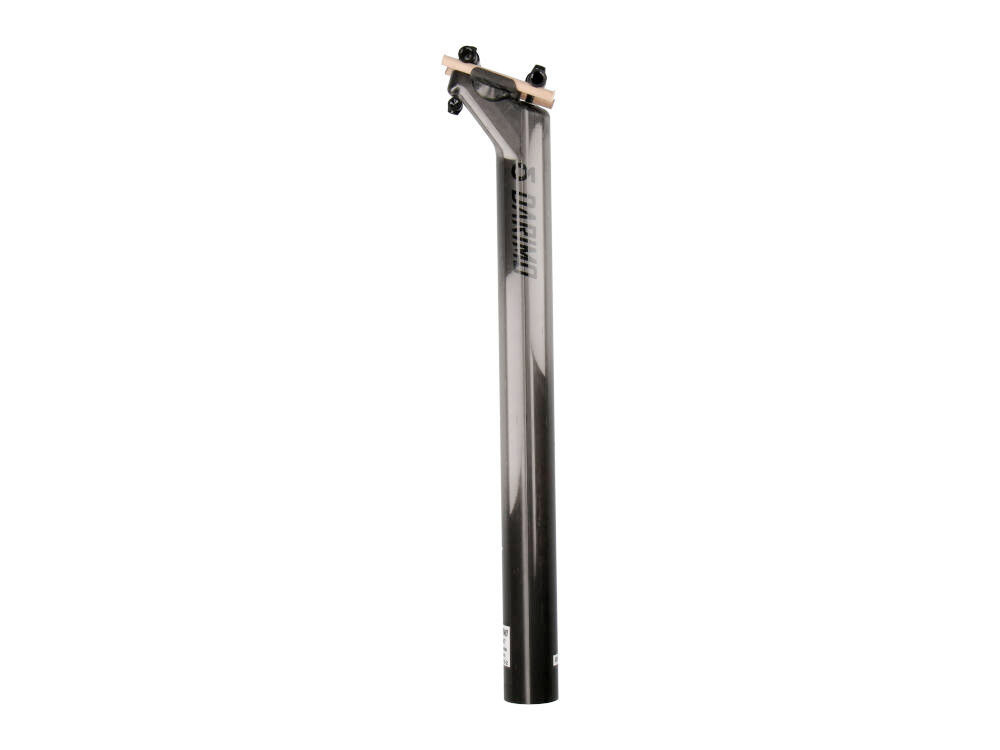

DARIMO CARBON seat post T2 SB 15 mm offset | UD glossy / black | 31.6 mm
We introduce: the Darimo carbon seat post T2 SB with 15 mm offset.
Darimo has optimized all parts of this seat post to achieve a sensationally low weight (117g at 31.6 mm diameter / 400 mm length) with maximum stability at the same time. The tube itself consists of asymmetrically arranged layers (bidirectional and unidirectional) carbon, which are laminated by hand. The layer structure is always adapted to the loads that occur on the seat post and varies in the arrangement and number of layers.

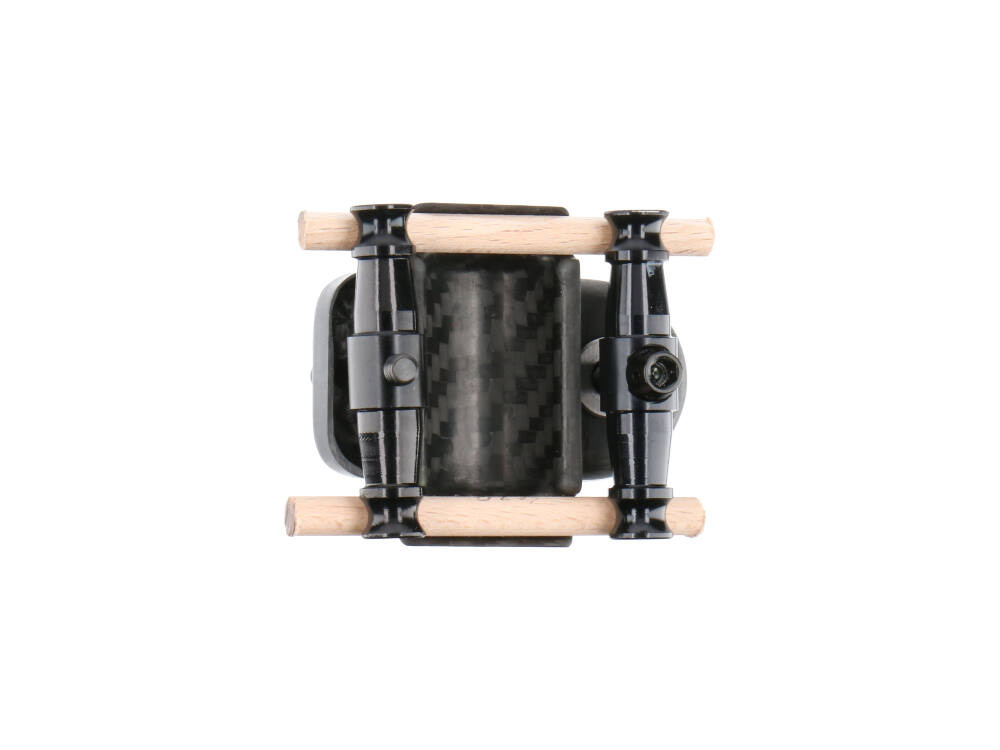

All parts of the clamp have a large contact area without sharp corners or edges and are suitable for any type of saddle frame, whether round or oval.
The Darimo T2 SB seat post has passed the ISO 4210 standard test. The weight limit of the driver including clothing and luggage is 90kg.
NOTE: The instructions for the product must be observed! Torques must be strictly adhered to. The clamping area must be observed and the seat post must NOT be shortened.
Technical specifications:
intended use : MTB, racing bike, CX, cross, gravel
Material: carbon, titanium, aluminum
Diameter: 31.6 mm
Length: 250 mm, 300 mm, 350 mm or 400 mm
Offset: 15 mm
Insertion depth: varies according to the length of the prop
Weight restriction: max.90kg
Finish: UD glossy | Decals black
Weight according to the manufacturer: 117g (400 mm)

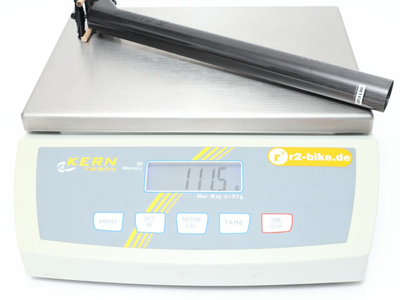

Weight weighed: 111.5g (31.6mm | 350mm)
Column length | Extension length min - max
250 mm | min. 100 mm - max. 175 mm
300 mm | min. 145 mm - max. 220 mm
350 mm | min. 190 mm - max. 265 mm
400 mm | min. 235 mm - max. 310 mm
Scope of delivery: 1x DARIMO CARBON seat post T2 SB 15 mm offset | UD glossy | 31.6 mm
Note: Other lengths, maximum driver weights, etc. are available on request. The decals are above the paint and can therefore be removed or replaced with a different color.
