Product details

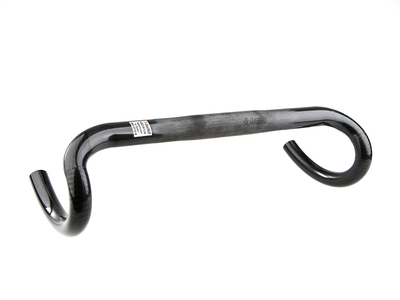

DARIMO CARBON Handlebar Carbon Road Ellipse | 31.8 mm UD matt | black

The Carbon forge of Darimo, which is located in beautiful Valencia on the east coast of Spain, has been producing some of the currently lightest carbon parts for XC bikes for some time. With the Road Ellipse handlebar, the Spaniards aim for the group of weight fanatics with racing bikes, cyclocrossers or gravel bikes.

The handlebar is available in four different finishes (UD glossy or matt, 3k gloss or matt) and widths of 380 mm, 400 mm, 420 mm or 440 mm, measured from center to center. All offered widths have a compact reach of 77 mm and 128 mm drop. The flattened upper part provides comfort when the tour or the race takes a little longer. Laminated guides on the underside for brake and shift cables help you to assemble everything perfectly.

In order to reach the sensational weights of 122 g / 40 cm, 128 g / 42 cm and 135 g / 44 cm, to pass the standard ISO test for handlebars and to be able to release the components up to 110 kg system weight, Darimo Carbon uses a specially developed Method of lamination. From 90 kg system weight Darimo recommends a reinforced version of the handlebar for more rigidity. Please contact our support .

The 31.8 mm handlebar clamp is suitable for current oversize stems. Darimo recommends a 4-bolt clamp and tighten it to a maximum of 3.5Nm. In the clamping area of ??the shift / brake levers, a torque of up to 4 Nm is permissible.

NOTE: The instructions for the product must be observed! Torques must be strictly adhered to. If the necessary knowledge or tools for the correct installation of the handlebars are missing, the installation must be carried out by a specialist workshop with appropriate knowledge.

Technical specifications:

intended use : Road bike, CX, Gravel
Material: Carbon
Handlebar clamp: 31.8 mm (Oversized)
Handlebar width: 380 mm, 400 mm, 420 mm, 440 mm (center - center)
Reach: 77 mm
Drop: 128 mm
Rise: 0 mm
Backsweep: 0 °
Upsweep: 0 °
System weight: max. 110 kg (driver incl. Bike and luggage)
Color / Finish: UD matt | Decals black

Weight: 137g (420mm)

Delivery: 1x DARIMO CARBON Handlebar Carbon Road Ellipse | 31.8 mm UD matt | black
