Description

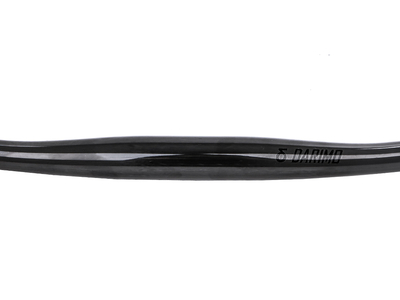

DARIMO CARBON Handlebar Carbon MTB Flatbar 9° | 31.8mm UD Glossy/Black
The Darimo Carbon MTB handlebar is the result of countless calculations and tests to the breaking point in order to achieve a record weight of 91g at a width of 700mm.
This handlebar is made entirely of carbon with a unique arrangement and orientation of the individual plies to achieve the best weight-stiffness-durability ratio. This type of production can only be realized by 100% manual work because each width has its own load-related arrangement of the layers. The handlebar passed the ISO 4210 test, but there is still a weight limit of 90kg for the driver including clothing and luggage. In tests up to the break, loads in excess of the 350 kg mark were required.
The 31.8 mm handlebar clamp is suitable for current oversize stems. Darimo recommends a 4-screw clamp with a maximum width of 50 mm. Furthermore, all Darimo handlebars have a reinforcement at the end of the handlebars to minimize the risk of damage in the event of a fall.
NOTE: The instructions for the product must be observed! Torques must be strictly observed. The clamping range must be observed and the handlebars must NOT be shortened.
Technical specifications:
intended use : cross country, marathon, touring
Materials: carbon
Handlebar clamp: 31.8 mm (oversized)
Handlebar width: 680, 700, 720, 740 or 760 mm
Rise: 0mm
Back sweep: 9°
Upsweep: 0°
can be shortened: no
Barend compatible: no
Rider weight: max. 90 kg (incl. clothing and possibly luggage)
Finish: UD glossy | Decals black
Weight according to manufacturer: k. A
Weight weighed: 91g (700 mm)
Scope of delivery: 1x DARIMO CARBON handlebar carbon MTB flat bar 9° | 31.8mm UD Glossy/Black
Note: Other lengths, max. rider weights, finishes (3K matt / UD glossy) and decals are available on request. The decals are over the paint and therefore removable.
