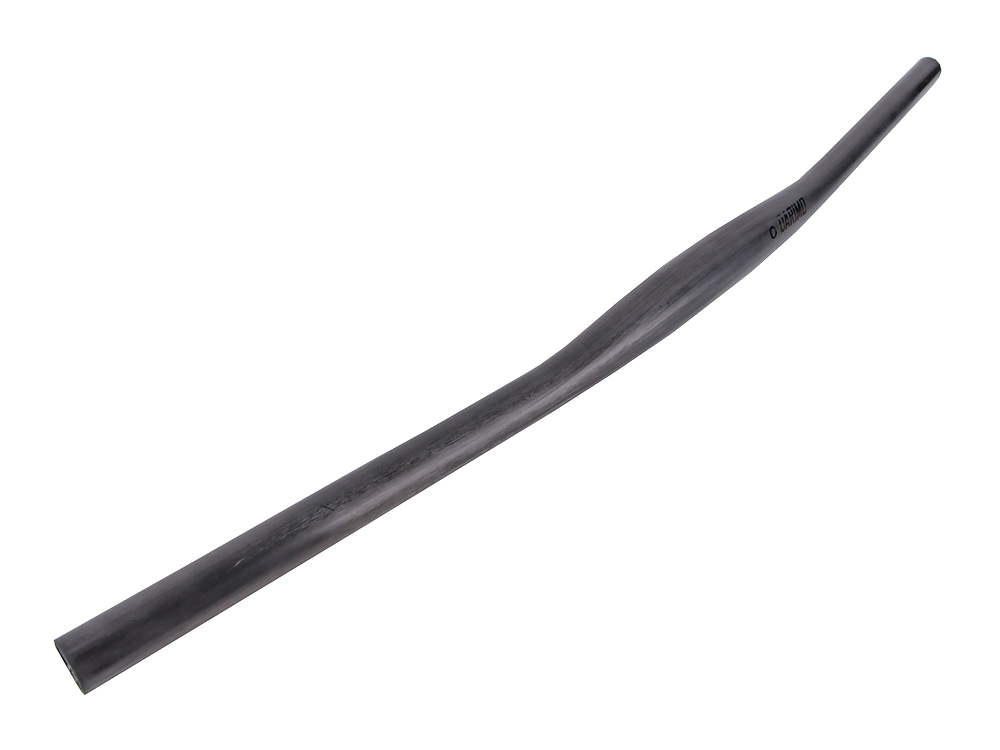

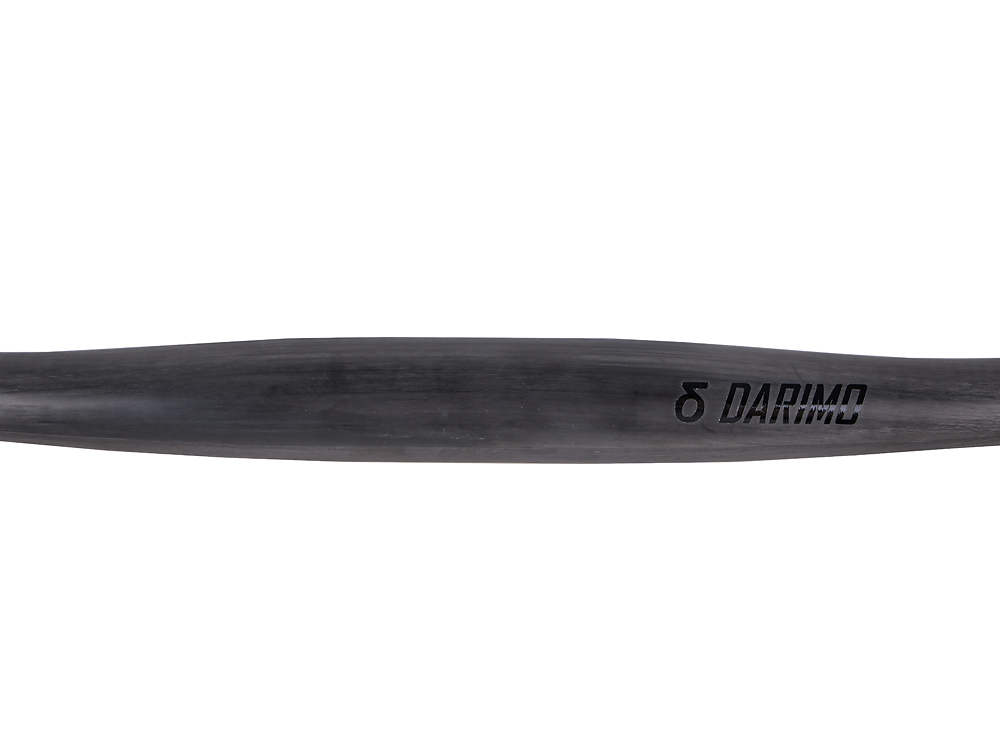

DARIMO CARBON Handlebars Carbon MTB Flatbar 6 ° | 31.8 mm UD matt / black
The Darimo Carbon MTB handlebar is the result of countless calculations and tests to break up to a record weight of 98g at 740mm width.
This handlebar is made entirely of carbon with a unique arrangement and orientation of the individual layers to achieve the best weight-stiffness-durability ratio. This type of production is only realized by 100% handwork, since each width has its own, load-bearing arrangement of the layers. The ISO 4210 test passed the handlebars, but there is nevertheless a weight limit of 90kg for the driver including clothes and luggage. In tests up to the break, loads of more than 350 kg were necessary.
The 31.8 mm handlebar clamp is suitable for current Oversize stems. Darimo recommends a 4-bolt clamping with max. 50 mm width. In addition, all the handlebars of Darimo have a reinforcement at the handlebar end to minimize the risk of damage in the event of a fall.
NOTE: The instructions for the product must be observed! Torques must be observed. The clamping area must be observed and the handlebar must NOT be shortened.
Technical specifications:
intended use : Cross Country, Marathon, Tour
Material: Carbon
Handlebar clamp: 31.8 mm (Oversized)
Handlebar width: 680, 700, 720, 740 or 760 mm
Rise: 0 mm
Backsweep: 6 °
Upsweep: 0 °
Can be shortened: no
Barend compatible: no
Driver weight: max. 90 Kg (including clothing and luggage)
Finish: UD matt Decals black
Weight according to manufacturer: 98g (740 mm)
Weight weighed: 88g (700 mm)
Scope of delivery: 1x DARIMO CARBON handlebar carbon MTB Flatbar 6 ° | 31.8 mm UD matt / black
Note: Other lengths, max. Driver weights, finishes (3K matt / UD glossy) and decals are available on request. The decals are over the varnish and thus removable.
