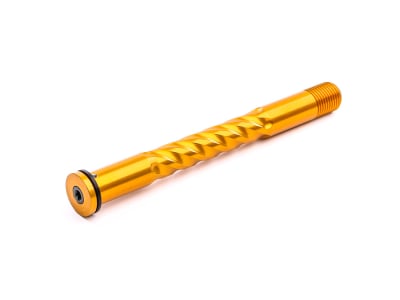

CRUEL COMPONENTS Thru-Axle X-12 | 12x148 mm boost
Cruel thru axles are made of high-strength aluminum 7075 T6 (Ergal) to ensure high rigidity!
The ultralight axle n are elaborately CNC-milled and then anodized to improve durability and increase surface hardness.
To further improve the product, an innovative clamping system was developed in which the tool holder is reinforced by a titanium insert. At the same time, this closes the opening that results from hollow drilling of the axle and thus additionally reduces the weight.
Technical specifications:
Material: Aluminum 7075 T6 (Ergal), Titanium Grade 5
Hub standard: QR12 (12 mm thru axle with 148 mm mounting width)
Compatibility: Frame with X-12 BOOST dropouts
Axle length: 170.0 mm
Axle diameter: 12 mm
Thread length: 19 mm
Thread pitch: M12x1,0
Contact surface, not threaded side: conical
Tool holder: Torx T25
max. permissible torque: 8 Nm
Color: black, red, gold, blue or poison green
Weight: 31.2g
Scope of delivery: 1x Cruel Components through axle + plastic washer
