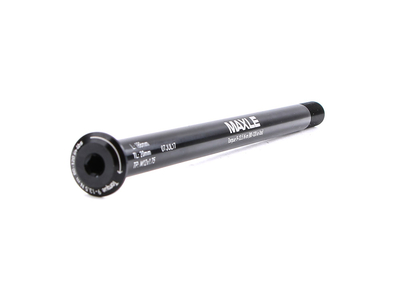

CRUEL COMPONENTS Thru Axle Maxle | 12x142 mm / 12x148 mm boost
Cruel thru axles are made of high-strength aluminum 7075 T6 (Ergal) to ensure high rigidity!
The ultralight axle n are elaborately CNC machined and then anodized to improve durability and increase surface hardness.
To further improve the product, an innovative clamping system was developed in which the tool holder is reinforced by a titanium insert. At the same time, this closes the opening that results from hollow drilling of the axle and thus additionally reduces the weight.
Material: Aluminum 7075 T6 (Ergal), Titanium Grade 5
Hub standard: QR12 (12 mm thru axle with 142 mm or 148 mm mounting width)
Compatibility: Frame with Maxle or Maxle BOOST dropouts
Axle length: 175.0 mm
Axle diameter: 12 mm
Thread length: 22 mm
Thread pitch: M12x1.75
Contact surface, not thread side: flat
Tool holder: Torx T25
Max. permissible torque: 8 Nm
Scope of delivery: 1x Cruel Components through axle + plastic washer
