Description
CRANKBROTHERS Pedals Stamp 7 Large | 2018
During the development of the Stamp Pedal, countless soles of well-known bike shoe manufacturers were put under the microscope at Crank Brothers to present a pedal which produces the best contact between rider and bike.
This resulted in the new, super-flat, concave pedal shape with 13mm at the outer edges and only 11mm in the pedal center.
In addition, it made sense to offer two sizes for different shoes. Small for 37 - 43 and Large Size for shoes from size 43 - 49.
The open design saves weight and favors self-cleaning in muddy conditions. Best grip is ensured by 10 in height Adjustable Pins Pro Pedalseite and additionally supported by the waffle pattern in the center.
From 2016, the pedals get inside and outside high quality premium Igus bearings which can be greased from the outside. Crankbrothers gives a 5 year warranty on their Stamp Pedal.
The Crankbrothers Stamp 7 pedals in small are also available in our webshop.
Technical specifications:
axle : Forged scm 435 CroMo steel
Pedal body: 6061-T6 Aluminum
bearing : Igus LL plain bearings
Sealing: Premium Sealing System
Pins: 10 per pedal side, changeable
Dimensions: 114mm x 111mm

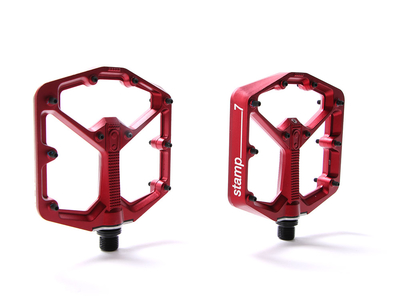

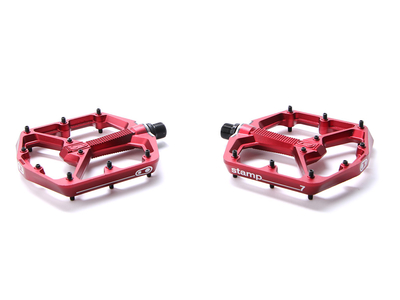

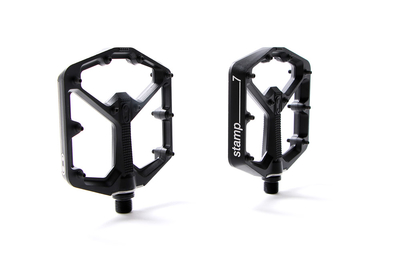

Color: red or black

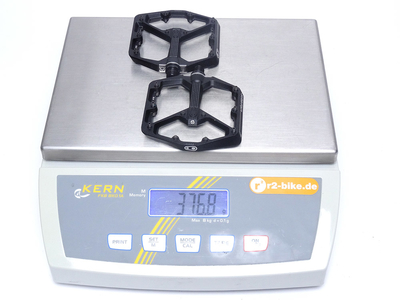

Weight: 370g
Scope of supply: 1 pair of CRANKBROTHERS Pedals Stamp 7 Large
