Description

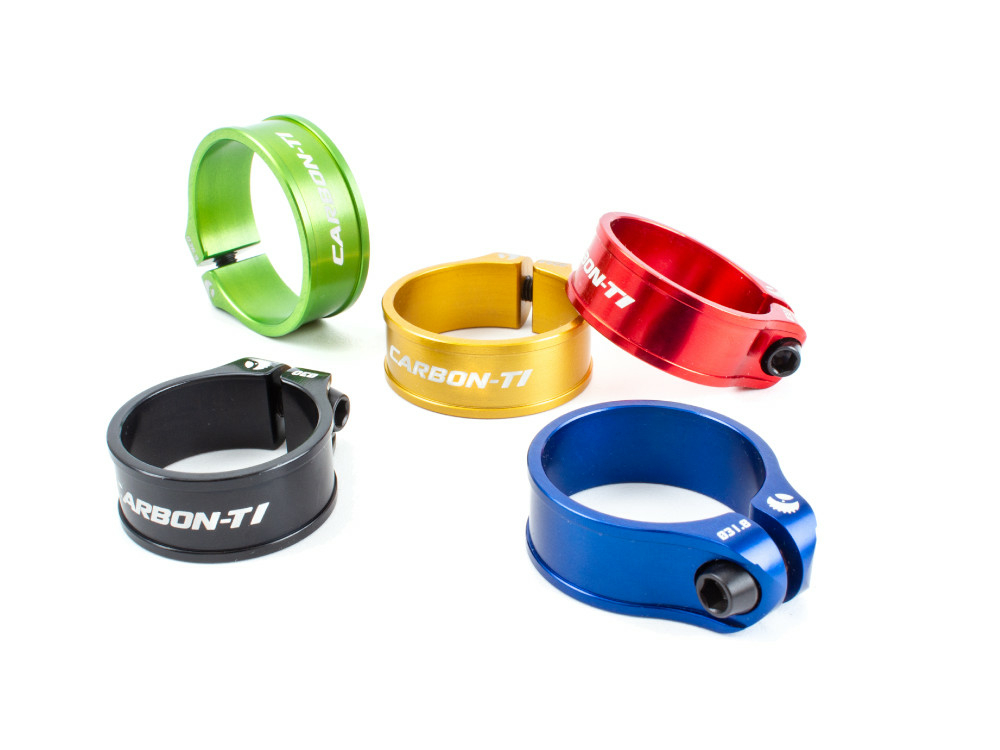

CARBON-TI seat clamp X-Clamp 3 | 36.9 mm
The CARBON-TI X-Clamp 3 is the super light saddle clamp from the Italian high-class forge. Compared to its predecessor, the design has turned out to be a bit slimmer, and a high clamping force has not been left out. As usual, this is generated by a titanium screw. In addition, the new design distributes the pressure forces that occur much better.
So that it fits your bike optimally, you have the choice between different colors.
Technical specifications:
Material clamp: aluminum 7075
Material screw: titanium grade 5
Seat tube Ø: 36.9 mm
Height: 14.0 mm
Clamping height: 12.0 mm
Max. permissible torque: 5 Nm
Tool holder: 4 mm hexagon socket
Color: silver, silver polished, blue, black, yellow, red, green, poison green, white or matt black
Weight according to the manufacturer: 10.0g
Weight weighed: 10.5g
Scope of delivery: 1x CARBON-TI X-Clamp 3 | 36.9 mm seat clamp
The CARBON-TI X-Clamp 3 is the super light saddle clamp from the Italian high-class forge. Compared to its predecessor, the design has turned out to be a bit slimmer, and a high clamping force has not been left out. As usual, this is generated by a titanium screw. In addition, the new design distributes the pressure forces that occur much better.
So that it fits your bike optimally, you have the choice between different colors.
Technical specifications:
Material clamp: aluminum 7075
Material screw: titanium grade 5
Seat tube Ø: 36.9 mm
Height: 14.0 mm
Clamping height: 12.0 mm
Max. permissible torque: 5 Nm
Tool holder: 4 mm hexagon socket
Color: silver, silver polished, blue, black, yellow, red, green, poison green, white or matt black
Weight according to the manufacturer: 10.0g
Weight weighed: 10.5g
Scope of delivery: 1x CARBON-TI X-Clamp 3 | 36.9 mm seat clamp
EAN:
8056182342713
MPN:
XCLAMP3D36.9 black
