CARBON-TI Rear Hub X-Hub SL 6-Hole BOOST 148 XD for 12x148 mm Thru Axle | Freehub Body SRAM XD

Item number:
Product weight: 197 g
Brands: Carbon Ti

old price: 387,50 €
Special price 275,00 €
MSRP: 430,00 €
You save 36,05%, that is 155,00 €

including 19% VAT. , excl. Shipping costs / shipping time info

hole drill

There are variations of this item. Please select the variation you wish.

available from stock
Credit Card, PayPal, Amazon...
Secure Transaction
Refund within 100 Days
Free Return

Product details | Availability


CARBON-TI rear hub X-Hub SL 6-hole BOOST 148 for 12x148 mm thru axle | Freewheel SRAM XD

Products from Carbon-Ti stand for lightweight construction without recklessness and compromises in stiffness. After all, all parts are driven and tested in the World Cup. This guarantees the end user high quality and reliability. All Carbon-Ti hubs are developed and produced in Italy.

The hub body of the X-Hub SP rear hub is elaborately CNC-milled and rotates around a multi-butted aluminum axle. With a diameter of 17 mm, this brings a good degree of rigidity to the hub. Four high-quality, double-sealed ball bearings are installed, which ensure a permanently silky smooth run. The axis play can easily be adjusted by hand from the outside. The new pre-load adjustment ring is now easier to operate.
The freewheel engages with four pawls, each with three teeth, in a 56-fold titanium tooth ring in order to be able to withstand even performance-oriented drivers. With a weight of just over 200g, this X-Hub is one of the lightest rear wheel hubs on the market.

Technical specifications:

intended use : Cross Country, Marathon, Tour
Material hub: aluminum 7075-T6
Material freehub body: aluminum 7075-T6
axle type : 12x148 mm thru-axle Boost
Number of holes: 24, 28 or 32 holes
Brake disc mount: 6-hole
Freewheel compatibility: 11-, 12-speed SRAM XD
Freewheel type: 4 pawls, 56 notches
bearing : 4x industrial ball bearings (1x 61903-LLB, 3x 61803-LLB)
Spoke type: J-Bend (curved)
Max.admissible spoke tension: 1275 N (maximum)
maximum system weight: n / a

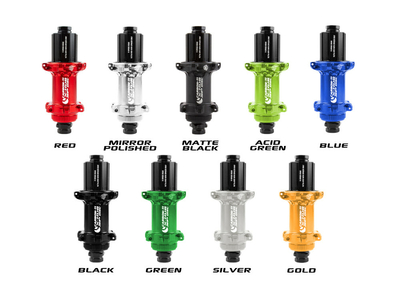

Color: black matt, red, gold, blue, silver, black, green or poison green

Weight according to the manufacturer: 197g
Weight weighed by yourself:

Scope of delivery:

1x CARBON-TI CARBON-TI rear hub X-Hub SL 6-hole BOOST 148 for 12x148 mm thru axle | Freewheel SRAM XD
