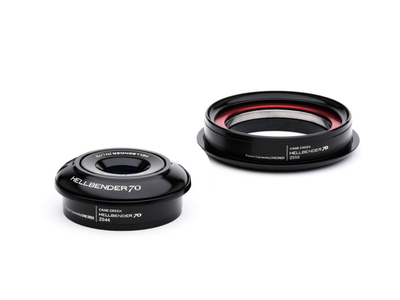

CANE CREEK Headset Hellbender 70 Lite Tapered ZS44/28.6-H8 | ZS56/40 1 1/8" - 1,5"

CANE CREEK Headset Hellbender 70 Lite Tapered ZS44/28.6-H8 | ZS56/40 1 1/8" - 1.5"

Cane Creek guarantees the highest quality components that are technically and visually in a league of their own. The Hellbender 70 Lite headsets are in no way inferior.
Not only lightweight construction fetishists, practically every biker benefits from these add-on parts. According to the manufacturer, it weighs up to 35% less than comparable models without sacrificing functionality or durability. The ball bearings are designed in an aluminum-steel hybrid design, which means smooth running and less mass. In addition to the obligatory bearing seals, additional rubber lips are attached to the upper cover cap and fork cone to keep water and dirt out. Even there, the negative external influences have no chance of penetrating further.
Of course, the choice of materials and the processing quality are of the highest quality. When installed correctly, nothing cracks or wobbles and the painted surface looks like the first day after many years.
Ahead cap and screw are also a feast for the eyes. The latter impresses with its matt titanium look and underlines the high quality of the headset. You don't want to look at the trail anymore...


Technical specifications:

Material: 6061 T-6 aluminum, stainless steel
Design: semi-integrated
Steerer: Tapered | 1 1/8" - 1 1/2"
SHIS upper part: ZS44/28.6
SHIS lower part: ZS56/40
Press-in dimension above Ø: 44 mm
Offset above: 10 mm
Press-in dimension below Ø: 56 mm
Offset below: 10 mm
Outer Diameter Top: 50mm
Outer Diameter Bottom: 62mm
Height above: 9 mm
Overall height below: 5 mm
bearing : Hellbender sealed aluminum stainless steel hybrid ball bearings
Color: Black

Weight according to the manufacturer: kA
Weight weighed: 90g (incl. ahead cap and claw)


Scope of delivery:

1x CANE CREEK headset Hellbender 70 Lite Tapered ZS44/28.6-H8 | ZS56/40 1 1/8" - 1.5"
1x ahead cap
1x ahead claw including screw
