Description
CANE CREEK Headset Hellbender 70 Lite Tapered IS42/28.6-H9 | IS52/40 1 1/8" - 1.5"
Cane Creek guarantees the highest quality components that are technically and visually in a league of their own. The Hellbender 70 Lite headsets are in no way inferior.
Not only lightweight construction fetishists, practically every biker benefits from these add-on parts. According to the manufacturer, it weighs up to 35% less than comparable models without sacrificing functionality or durability. The ball bearings are designed in an aluminum-steel hybrid design, which means smoother running and less mass. In addition to the obligatory bearing seals, additional rubber lips are attached to the upper cover cap and fork cone to keep water and dirt out. Even there, the negative external influences have no chance of penetrating further.
Of course, the choice of materials and the processing quality are of the highest quality. When installed correctly, nothing cracks or wobbles and the painted surface looks like the first day after many years.
Ahead cap and screw are also a feast for the eyes. The latter impresses with its matt titanium look and underlines the high quality of the headset. You don't want to look at the trail anymore...
Technical specifications:
Material: 6061 T-6 aluminum, stainless steel
Design: fully integrated
Steerer: Tapered | 1 1/8" - 1 1/2"
SHIS upper part: IS42/28.6
SHIS base: IS52/40
Press-in dimension above Ø: 42 mm
Offset at top (bearing height): 6.2 mm
Press-in dimension below Ø: 52 mm
Offset below (bearing height): 6.5 mm
Outer Diameter Top: 45mm
Bottom Outer Diameter: 52mm
Height above: 9 mm
Overall height below: 4 mm
bearing : Hellbender sealed aluminum stainless steel hybrid ball bearings
Color: Black
Weight according to the manufacturer: kA

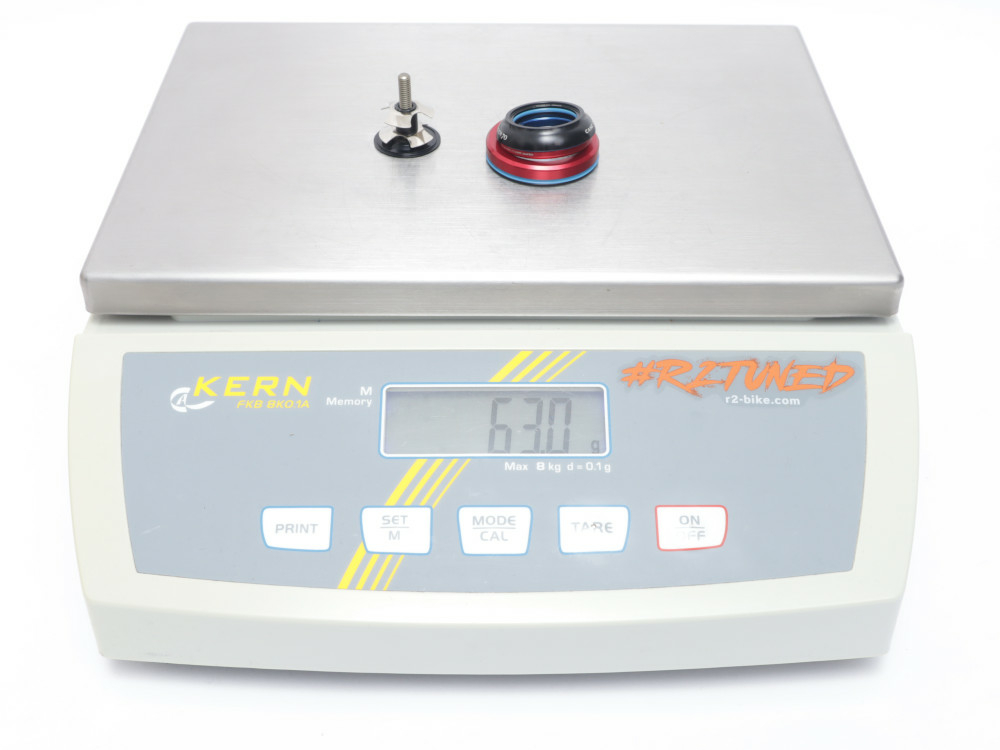

Weight weighed: 63g (incl. ahead cap and claw)
Scope of delivery:
1x CANE CREEK headset Hellbender 70 Lite Tapered IS42/28.6-H9 | IS52/40 1 1/8" - 1.5"
1x ahead cap
1x ahead claw including screw
