Description

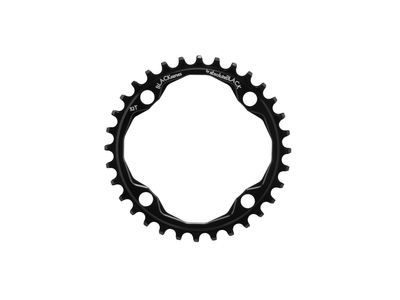

BLACKseries by ABSOLUTE BLACK chainring 1-fold LK 104 | 4 hole narrow wide black
The ultimate solution for Shimano and other cranks based on the 104 mm bolt bolt circle diameter diameter. If you've ever thought about installing a 1x9 / 1x10 / 1x11 drive and are wondering how to solve the chain guide problem, then here is the answer.

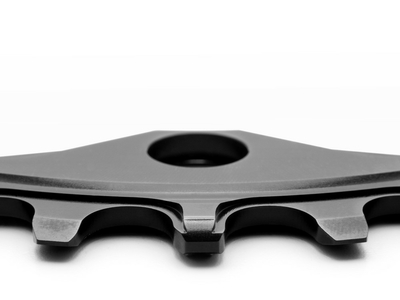

BLACKseries chainrings have special teeth that prevent the chain from jumping off. The principle follows that of the SRAM XX1 chainrings. In conjunction with a SRAM Type2 / 3 or Shimano Shadow + rear derailleur, which have a greatly increased cage preload, the chain is reliably held in position even without a chain guide.
about BLACKseries
BLACKseries is a sister company of absoluteBLACK Ltd. It was founded out of the desire to be able to offer an alternative to the ultra-modern products from absoluteBLACK.
BLACKseries products use the same raw materials, manufacturing processes, quality controls and tooth profiling as absoluteBLACK. The difference lies in the overall industrial design, which saves a lot of time for CNC machining and thus makes the products more attractively priced for the end customer.
Technical specifications:
intended use : MTB, dirt jump
Material: 7075 Txxx aluminum
Technology: Narrow Wide
bolt circle diameter : 104 mm (standard)
Attachment: 4-arm spider
Number of teeth: 32 or 34 teeth
Compatibility cranks : all cranks with 104 mm bolt circle diameter (Shimano XT / Zee / Deore / SLX / XTR, Race Face, FSA, E13)
Compatibility chain: 9-speed, 10-speed , 11-speed or single 11-speed
Mounting position: inside
chain line : depending on the crank used
Offset: standard
Adjustment options: none
Range (ovalization): -
Timing (force introduction): -
Color: Black
Weight according to the manufacturer: 37g (32 teeth), 46g (34 teeth)

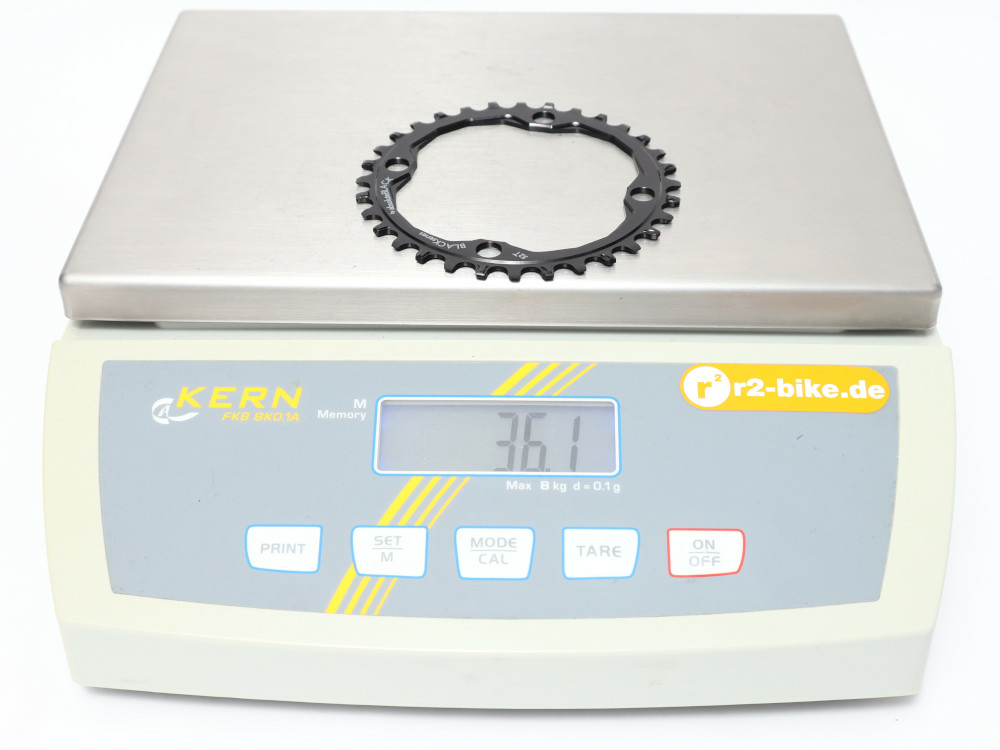

Weight weighed: 36g (32T)
Scope of delivery: 1x BLACKseries by ABSOLUTE BLACK chainring 1-fold LK 104 | 4 hole narrow wide black
