Description
BIKE AHEAD COMPOSITES wheelset 29" TWO SIX BOOST | SRAM XD Center Lock

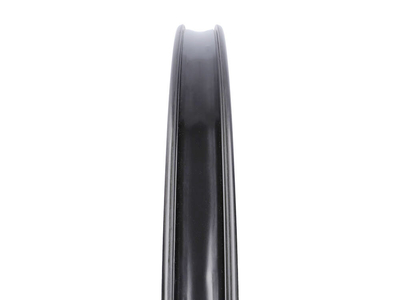

The revolution of a carbon mountain bike rim! The unique Safe-Wing-Profile with an inner width of 30 mm for an incredibly wide range of uses.
The 30 mm rim, the heart of the THREE ZERO wheelset, does a lot differently than conventional rims. The innovative safe wing profile enables the tire to be perfectly supported and the associated soft rolling over the rim flank. An advantage that you can experience directly with low air pressure and wide tire cross-sections. The tipping of the tire is minimized to such an extent that the air pressure can be reduced by an average of 0.2 bar without risking the carcass smearing or tipping. This significantly increases grip, driving safety and comfort.
What is particularly special about this rim design is its puncture resistance. Typically, the rim flanges are constructed as a standing carbon fiber laminate, making them more prone to delamination. The Safe-Wing-Profile, on the other hand, has a completely surrounding laminate, so the material on the rim flange is closed and protected.
The carbon rim revolution for your mountain bike, no matter where, no matter when!
100% MADE IN GERMANY
Perfect craftsmanship guarantees a grandiose product. With the Made in Germany label, Bike Ahead Composites is committed to manufacturing all products carefully, cleanly and fairly.
All production steps take place in-house, from the idea to the series product. This means that the entire production process and quality can be monitored at all times in order to be able to manufacture safe products. In accordance with the philosophy of "functional lightweight construction", the guys from Bike Ahead know every one of their products down to the smallest carbon fiber.
Technical specifications:
intended use : MTB Cross Country/Down Country/Marathon/Trail
Wheel size: 29"
ETRTO: 30-622
Rim Type: Clincher, Hookless for clincher and folding tires
Brake type: Disc only
Material rims: carbon
Internal width: 30mm
External width: 42mm
Rim Height: 20mm
Offset: 3mm
Number of holes: front 28 / rear 28
Spokes: DT Aerolite straight pull
Lacing pattern: front | crossed 3 times at the back

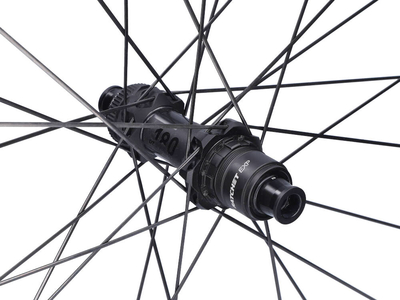

Hubs: DT Swiss 180 EXP with SINC ceramic bearings
Brake disc mount: Center Lock
axle type front: 15x110 mm BOOST thru axle
Rear axle type : 12x148 mm BOOST thru axle
Front bearing : 2x industrial bearings, SINC Ceramic
bearing : 4x industrial bearings, SINC Ceramic
Freehub Compatibility: SRAM XD
Freewheel type: star washers, 36 teeth (max. 10° free travel)
Recommended tire width: up to 2.5"
max. air pressure at 2.1": 3.2bar (43psi)
max. air pressure at 2.25": 2.5bar (34psi)
max. air pressure at 2.4": 2.2bar (31psi)
maximum driver weight: 105 kg (driver, clothing and possibly luggage)
tubeless capable: yes
Valve hole: Presta valve (SV, 6.5mm)
Color rim / finish: black / UD carbon matt
Color decals: white (removable)
Color hubs: black
Weight according to the manufacturer: from 1380g

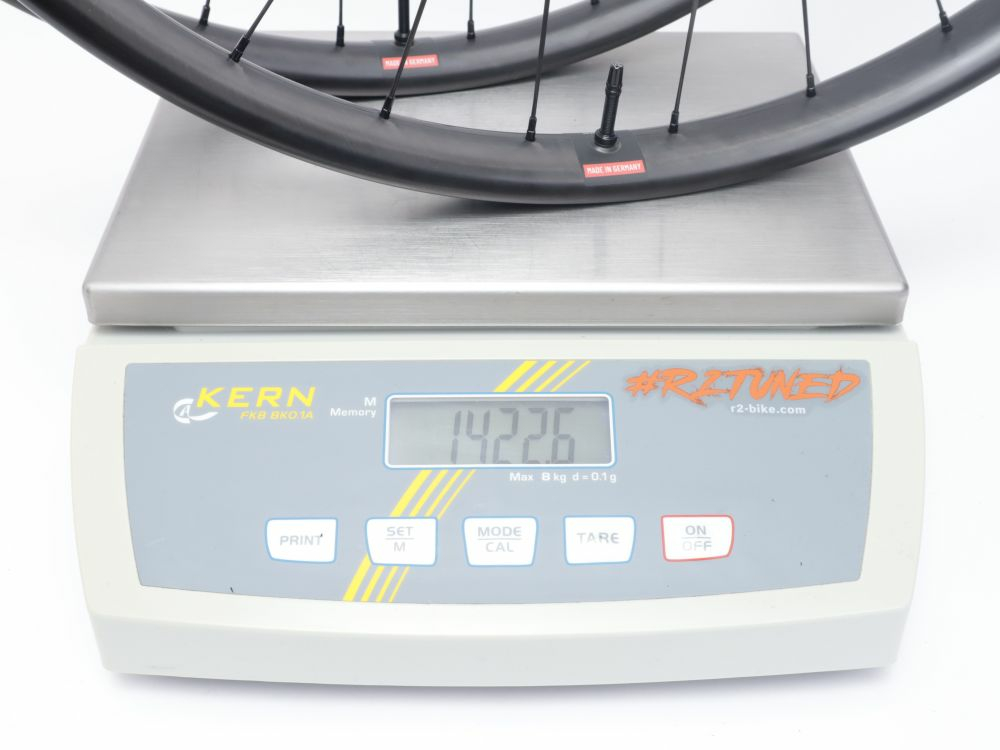

Weight weighed: 1423g (incl. valves and tubeless tape)
Scope of delivery:
1x BIKE AHEAD COMPOSITES wheelset 29" TWO SIX BOOST | SRAM XD Center Lock incl. valves and tubeless tape
1x wheel bag
