Description

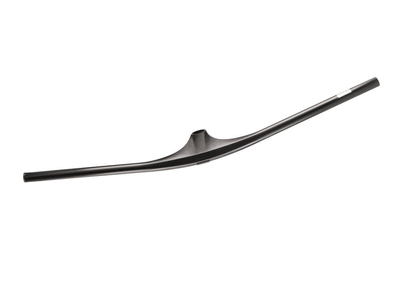

BIKE AHEAD COMPOSITES stem-handlebar unit The Unit 55 | UD carbon matte
A handlebar-stem combination can also be beautiful and functional...THE UNIT is a must-have on every mountain bike!
The trend towards complete integration is the focus of future bikes. The design language of the frames is complex and organic at the same time. Bike Ahead Composites wanted to harmoniously reflect these two requirements with the handlebar-stem combination THE UNIT. Nature has provided a model for this - a sea animal - the manta ray.
The design combines a dynamic and purposeful choice of lines with a unique internal stem clamp to create an aesthetic unit that cuts a fine figure on any bike.
In addition to the design, a safe and durable product was of course also the focus of development. At this point, the Würzburg company can draw on 10 years of CFRP expertise in terms of construction and fiber structure.
The result is very good damping in the handlebars and high torsional rigidity in the stem, which is perfectly rounded off by the patented NSA applications in the clamping area of the shift and brake levers.
But that's not all, Bike Ahead still has an ace up its sleeve!

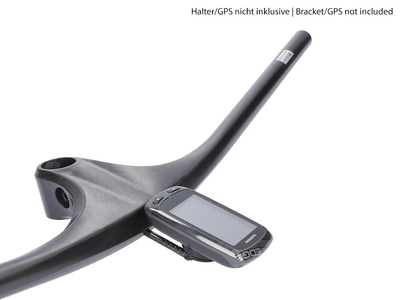

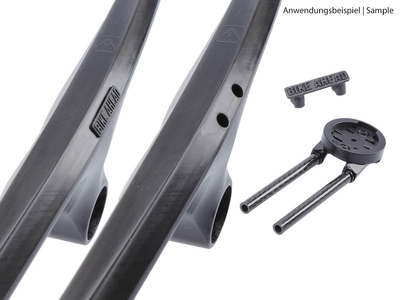

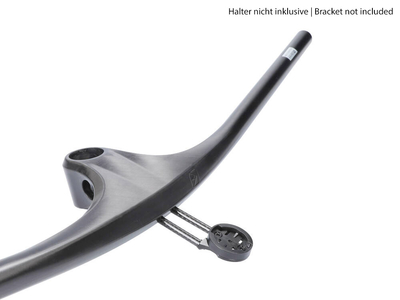

In cooperation with Carbonworks, the German manufacturer of the lightest GPS computer mounts, a unique system was developed in which the mount can be mounted directly.
NOTE: The GPS holder must be purchased separately and is not part of the article!
100% MADE IN GERMANY
Perfect craftsmanship guarantees a grandiose product. With the Made in Germany label, Bike Ahead Composites is committed to manufacturing all products carefully, cleanly and fairly.
All production steps take place in-house, from the idea to the series product. This means that the entire production process and quality can be monitored at all times in order to be able to manufacture safe products. In accordance with the philosophy of "functional lightweight construction", the guys from Bike Ahead know every one of their products down to the smallest carbon fiber.
NOTE: The instructions for the product must be observed! Torques must be observed. If you do not have the necessary expertise or tools for correct installation, the installation must be carried out by a specialist workshop with the appropriate knowledge. The handlebar stem unit must NOT be mounted on forks with carbon shafts. No bar ends may be mounted.
Technical specifications:
intended use : MTB
E-Bike Ready: yes
Material: UD carbon
Stem Length: 55mm
Stem angle: -4°
Clamp height: 43 mm
Minimum insertion depth fork shaft: 41 mm
Max. torque on the steerer tube: 8 Nm
Max. torque attachments/handles: 2 Nm
Handlebar width: 800

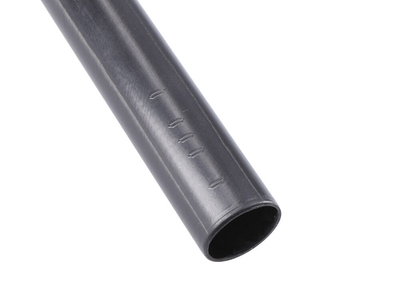

Can be shortened: yes , 40 mm per side
Rise: 0mm
Back sweep: 9.5°
Driver weight: max. 130 kg (driver including clothing and luggage)
ATSM F2043-13: Category 4
Color/Finish: UD carbon matt
Weight according to the manufacturer: 215g (+/- 5%)
Weight weighed: 233.3g
Scope of delivery: 1x BIKE AHEAD COMPOSITES stem handlebar unit The Unit 55 | UD carbon matte
NOTE: The GPS holder must be purchased separately and is not part of the article!
