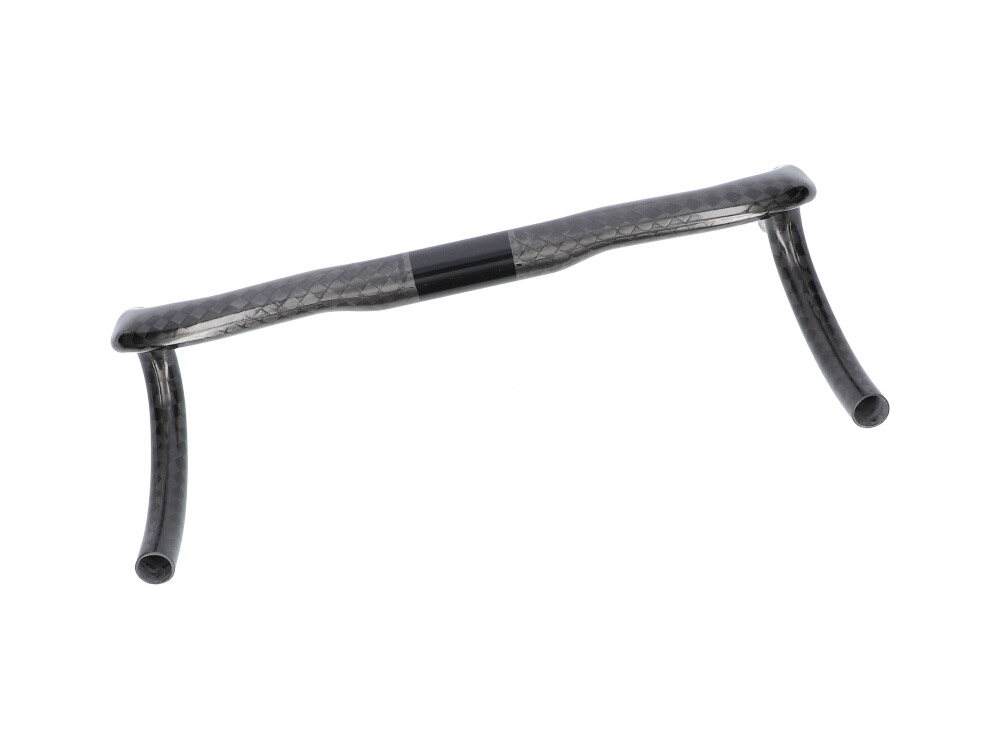

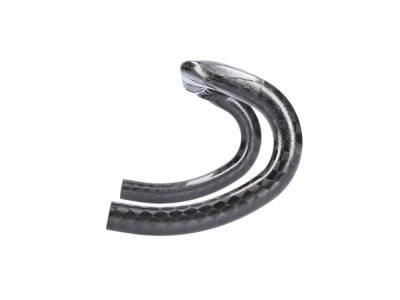

BEAST COMPONENTS handlebar road bike Ultra Bar Carbon 31.8 mm square finish black
Beast Components was founded in 2016 by students at the Lightweight Design Chair in Dresden. In view of their origin, it was important from the outset to incorporate the latest scientific methods and the current state of the art into the development of the products. The close cooperation with the Institute for Lightweight Construction at the TU Dresden also helps them in this regard.
Beast Components products are characterized by their combination of lightweight construction, stability and extraordinary optics. But the company founders are also aware of their social responsibility. Instead of outsourcing production to Asia, all components are handmade in Germany and tested in-house. Because the fiber structure of the components is not hidden behind a layer of paint, the high manufacturing quality and clean processing are obvious.
Elegant and ultra-comfortable - with its extravagant shape, the Ultra Bar sets new standards in terms of ergonomics. The uniquely shaped corner areas of the top link are particularly striking. With their large contact surface, they are extremely comfortable in a relaxed, upright sitting position and distribute the contact pressure evenly over the palm of your hand. The nerve tracts are thus significantly less stressed and the risk of hand pain and numb fingers is significantly reduced. The area around the hoods also has an enlarged contact surface and additionally flattened outer edges, which enable a relaxed side and corner grip. With their narrow curvature, the drops ensure perfect compatibility with the latest generation of shift/brake levers. The gentle curve provides comfortable hand positioning for optimal power transfer. Visually, the Gravel Bar impresses with its flawless carbon structure and the subtle, black Beast logo.
Because of their belief in the high manufacturing quality of their products, Beast-Components gives first-time owners a 5-year manufacturer's warranty from the date of purchase after product registration, as well as a lifetime crash replacement program (50% off the RRP).
Technical specifications:
Area of intended use : road bike, gravel
Materials: carbon
Handlebar clamp Ø: 31.8 mm
Wide clamping area: 100 mm (also suitable for time trial attachments in this area)
Handlebar width top link (middle - middle): 400 mm, 420 mm, 440 mm or 460 mm
Forward Storage / Reach: 80mm
Drop: 128mm
Outer Bend / Flare: 4°
Inside bend: 2°
Back sweep: 2°
max. driver weight (driver, clothing and luggage): without restriction
max. permissible torque: stem 5 Nm | components 4 Nm
Appearance/Finish: Square carbon, satin finish
Weight according to the manufacturer: 242g (400mm), 250g (420mm), 259g (440mm), 266g (460mm)
Weight weighed: 247g (250mm)
Scope of delivery:
1x BEAST COMPONENTS handlebar road bike Ultra Bar Carbon 31.8 mm square finish black
1x assembly paste
1x instruction manual
Manuals / Downloads
Manual EN
